76316W15

Double emission wall lights for outdoor application. The warm white LED light source with a spot light distribution is composed of 2 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.99 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

24W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1538LM

Finishing

WHITE

IP Rating

IP65

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

SIMES

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

Fixing base and recessing box in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. Mechanical resistance IK 10 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: G. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

XAL

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Surface mount rectangular multi-downlight made of luminaire housing and can be attached to mounting plate without tools by interlock, converter integrated into luminaire housing; surface black powder coated equipped with two flood square light elements; symmetrical light distribution with precise radiation characteristic. High quality reflector with micro-faceted, aluminum-vaporised surface. Protection IP20

LINEALIGHT

PROJECTOR LIGHT

OUTDOOR LIGHTING

A single-emission projector with a super warm white 2700K LED (CRI 80) delivering 1265 lm at 140.6 lm/W. Made of AISI 316 steel with an electropolished finish and extra-clear tempered glass diffuser. IP68-rated, weighing 1.2 kg, with a 13W power consumption. Includes a 1m power cable, protection class II, and can be wall, ceiling, or floor-mounted. Compliant with EN 60598-1.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

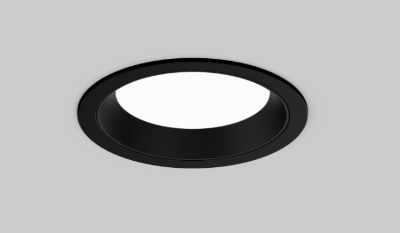

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.120 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6.5 W. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 48 mm diameter hole (in plasterboard) with an outer casing, code 89374(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
