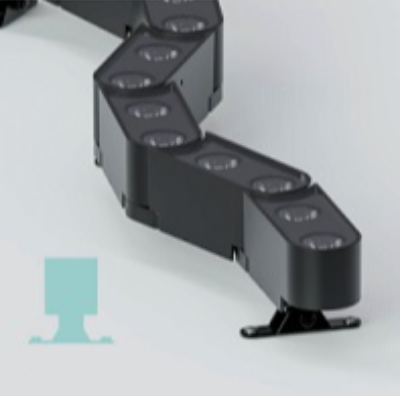

LINEALIGHT

Surface mounted modular system in die cast aluminium. Available in different length configurations based on a 83mm link (2 LED per link) with a 76mm increment. Section 34x36.6mm. Its flexible structure maintain a constant 38mm pitch between the LED.  Its flexible design ensures a consistent 38mm pitch between LEDs for seamless light distribution. The system is supplied inclusive of driver for easy integration and installation.

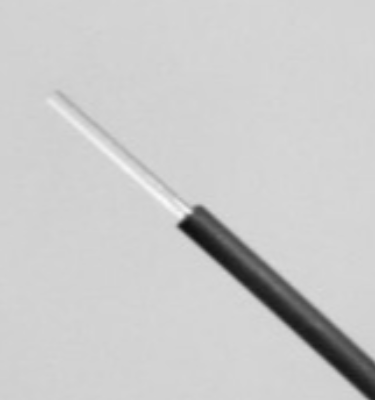

Fibre Optics Lighting Set :

50 PMMA Ø5.8 mm Fibre Optics Harnesses and Light Generator and Twinkle Wheel Kit.

Twinkle & Color Wheel come in 2 options for Fibre : MAX 500 PTS = 500 x PMMA Ø1.0mm OR MAX 420 PTS = 350 x PMMA Ø1.0mm + 70 x PMMA Ø1.5mm

Item no: 01310458 + 99030020 + 01600302 + 52000524 / 52000530

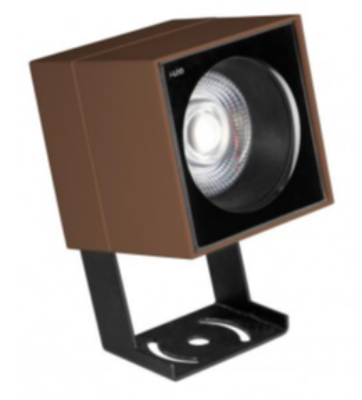

"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process: 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 1000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
