LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

81689W50

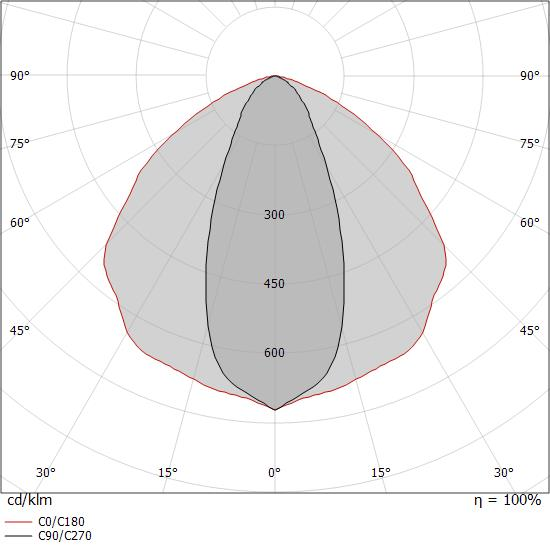

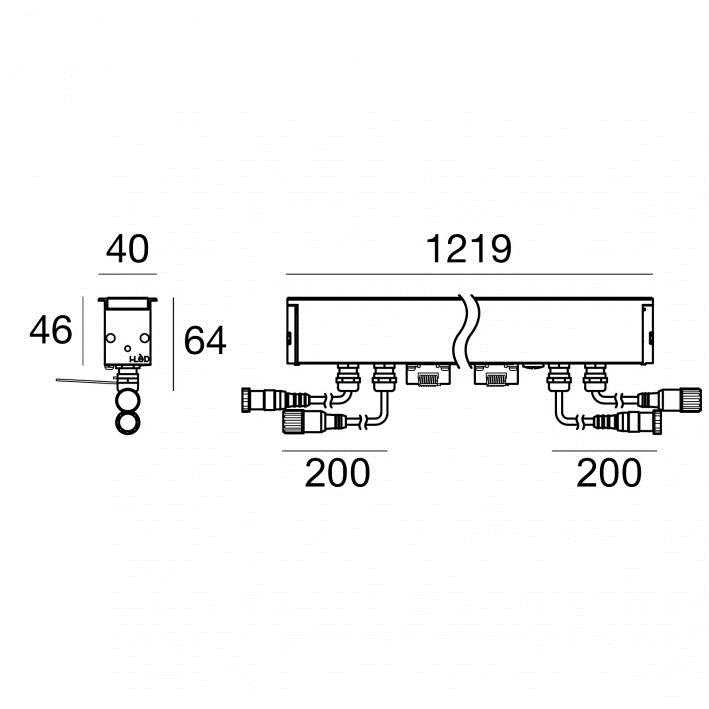

Single emission lines for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.010 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99764 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

19.1W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1658LM

Finishing

ANODISED ALUMINUM

IP Rating

IP68

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

BEGA

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Luminaire housing made of aluminium, surface colour velvet white Polymer lens made of BEGA NeoGlass® Mesh fabric structure made of plastic Inside hue velvet brass. Ceiling luminaire downlight · indoor luminaire with aluminium housing for non-glare light deflected downwards. The ingress protection degree is IP20, IK03. DIMENSIONS: (WxHxD) ( 120x115x120)mm.

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

ERCO

RECESSED DOWNLIGHT

INDOOR LIGHTING

Indoor recessed downlight made of aluminium housing with connection cable L500mm. Fixing springs for ceiling thicknesses of 1-40mm. 2-pole terminal block. Lens made of optical polymer. Anti-glare cone with covered mounting detail: polymer, white (RAL9016). Optical cut-off 30°. The luminaire is protected on the room side against splashing water.

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
