IGUZZINI

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

LINEALUCE_BH19

Direct light luminaire, designed to use monochrome LED lamps. Ceiling- and wall-mounted. Consists of a body and supports for installation (to be ordered separately). Extruded aluminium boy, with zamak die-cast end caps complete with silicone seals. IP65,IK05.

Specification

Power

10.3W/1.5M

Color Temperature

3000K

Light Source Type

LED

Lumen Output

864LM/1.5M

Finishing

GREY

IP Rating

IP65

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

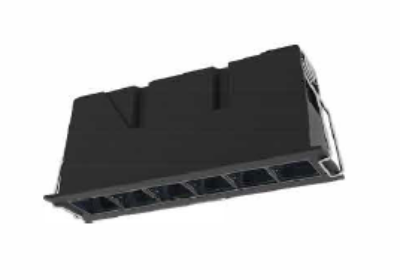

CDN LIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
