LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

94021W07

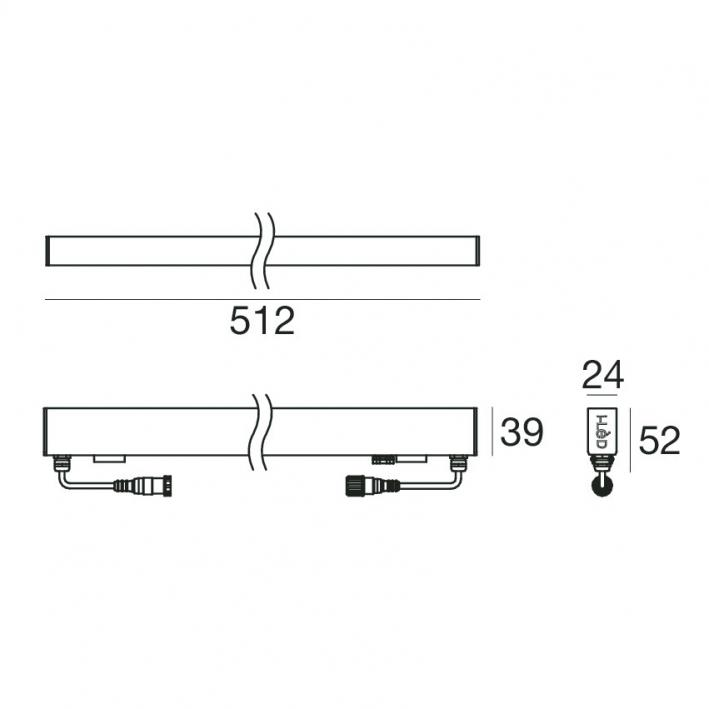

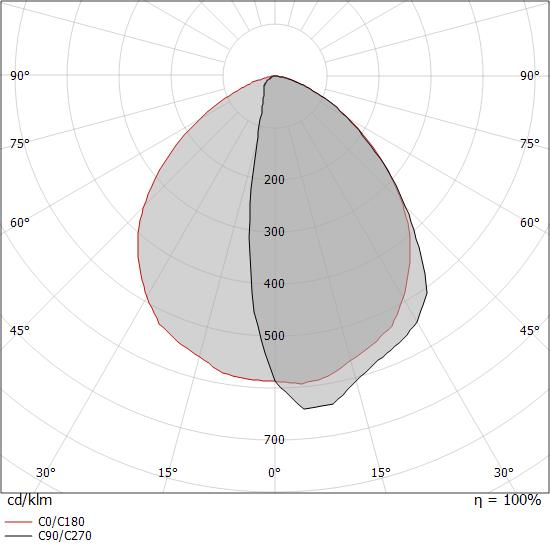

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 120 topled LEDs. The device body is made of uv resistant polycarbonate and features a transparent finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.39 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.250 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted with an outer casing, code 98842 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

367LM

Finishing

TRANSPARENT

IP Rating

IP67

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LUCI

LED STRIP

INDOOR LIGHTING

LED lumnaire 2 types of LED pitch (7.1 or 17.8mm) for profile and cove lighting. The 5 wattage options, ranging from 2 to 15W/m, utilize the same LED package to ensure consistent CCT High efficient LED package achieving up to 185 lm/W.

LINEALIGHT

PENDANT

INDOOR LIGHTING

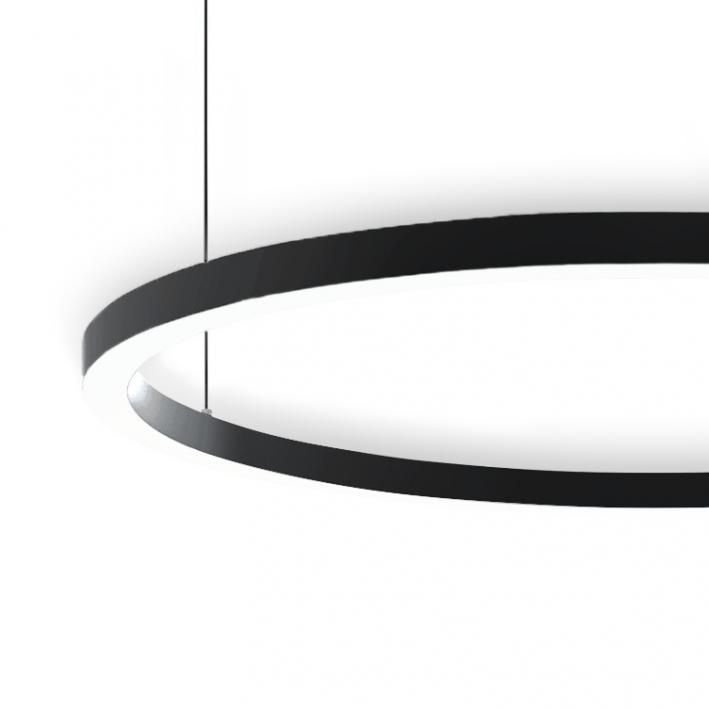

Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 588 topled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 11 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
