Products

LINEALIGHT

WALLWASHER
OUTDOOR LIGHTING

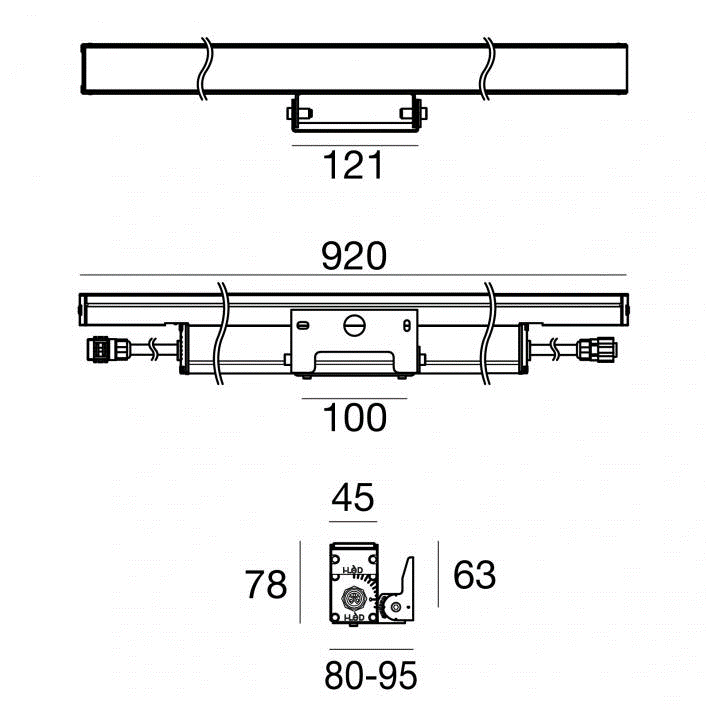

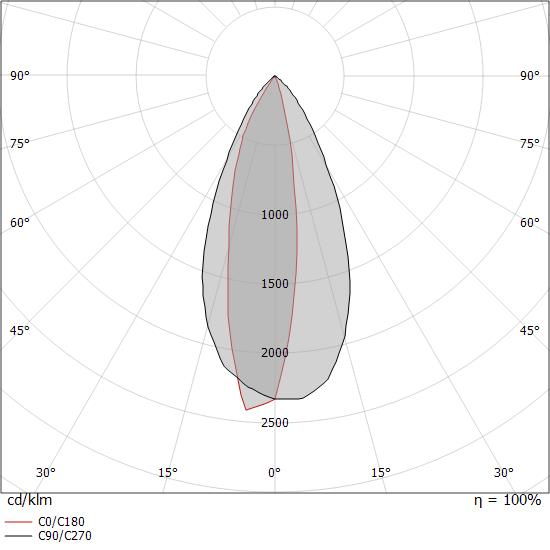

81617W30
Single emission lines for outdoor application. The warm white LED light source is composed of 33 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 3 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
37.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2270LM
Finishing
ANODISED ALUMINUM
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

SPARK
TRACKLIGHT
INDOOR LIGHTING
Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different types of bean angles.
SIMES
INGROUND UPLIGHT
OUTDOOR LIGHTING
Die cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L front trim 2 mm thick. Toughened glass diffuser 12mm thick for COMPACT 200, 12mm thick for COMPACT 275, 15mm thick for COMPACT 360. Luminaire hard wired with single neoprene cable with cable gland. Stainless steel screws. Recessing box in polypropylene arranged for cable entries in all 4 sides. Silicone gaskets.
LINEALIGHT
PENDANT
INDOOR LIGHTING
Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 336 topled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING

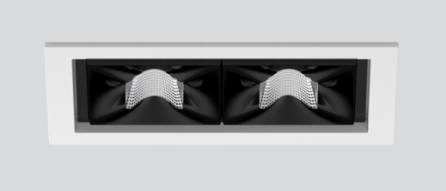

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.
