LINEALIGHT

WALLWASHER
OUTDOOR LIGHTING
82303W25

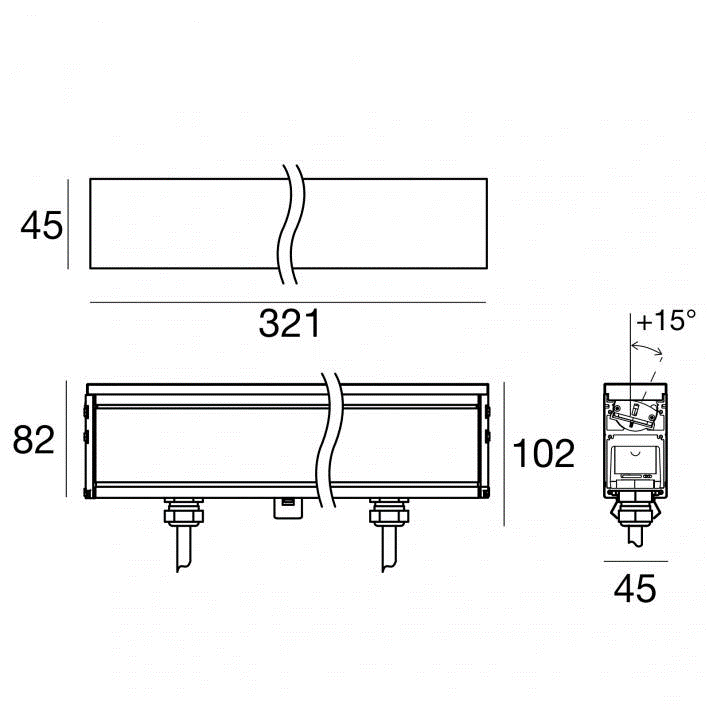

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98724 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
13.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1009LM
Finishing
BLACK
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

PHOS
ADJUSTABLE DOWNLIGHT
OUTDOOR LIGHTING
The Eyeconic Round Adjustable is a recessed, adjustable downlight with an Ø80mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. 360° rotation, 28° Tilt. Easily interchangeable optics . Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING

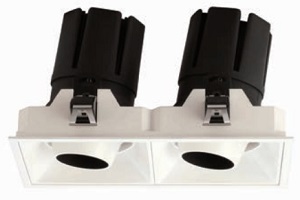

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with four medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
BEGA
FOOT LIGHT
OUTDOOR LIGHTING
Recessed location luminaire for installation in walls or stairs. Installation possible in horizontal or vertical burning position. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK07. DIMENSION: (W)330x(H)125x(D)90mm.
SPARK
ZOOMABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable Zoomable downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish available upon request.
