81604W25

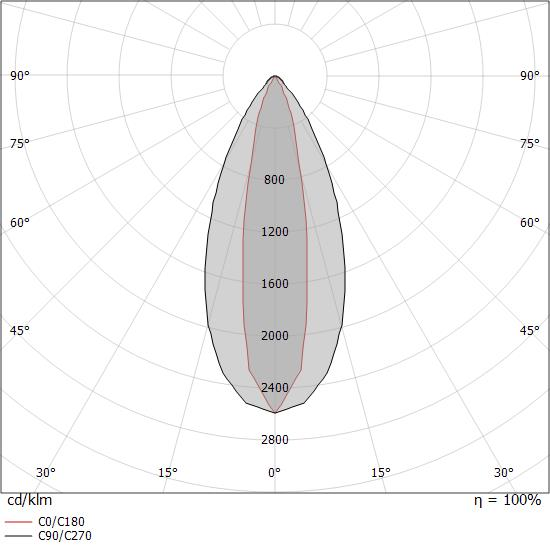

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98672(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

20.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1587LM

Finishing

ANODISED ALUMINUM

IP Rating

IP67

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

FLOS

WALLWASHER

OUTDOOR LIGHTING

LED light source included. Integrated 24V dc ON/OFF remote electric power supply. Adjustment on vertical axis: 15° max. Rotation on horizontal axis: 359° max. Remote power supply that must be placed in a junction box, equipped with a protruding, 400 mm cable with an M12 screw-on connector that guarantees the water tightness of the luminaire, and with a 250 mm cable for the connection to the power line. Extra clear transparent glass. Adjustable light intensity version available upon request.
