92132W25

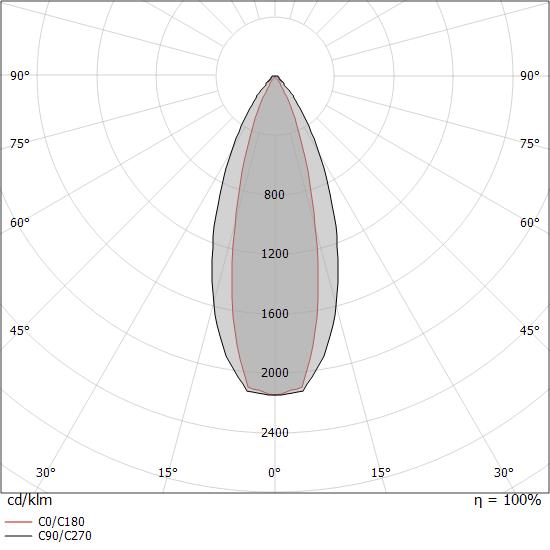

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98671 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
14.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1009LM
Finishing
ANODISED ALUMINUM
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

ACCLAIM
SURFACE LINEAR LIGHT
OUTDOOR LIGHTING

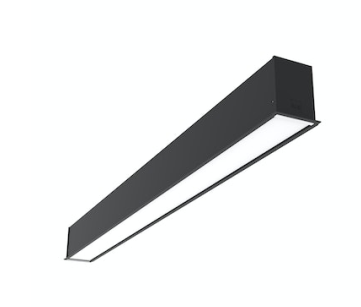

Ease of installation and outstanding flexibility are two standout features of Adapt Linear™. These smart indoor fixtures are quick to ship, quick to fit and able to change - in a word: Adaptable. The built-in link cables can retract to allow fixtures to either be directly abutted or set at angles up to 45°. This makes daisy-chaining quick, simple and responsive. Numerous high-CRI color temperatures of white are available together with a wide range of optics. Every model also features PowerSwitch Technology™, which provides onboard switchable power outputs at 5W or 10W per linear foot: Brighter, shorter runs - Check. Less bright, longer runs - Check. Control is via 0-10V (sink or source) and all standard mains supply voltages are supported.

LINEALIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING

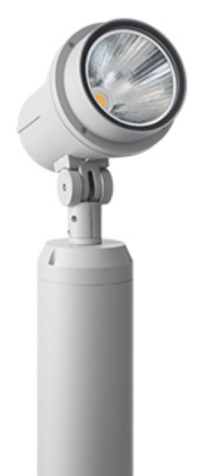

Single emission projectors for outdoor application. The super warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 849 lm, with a 126.7 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening

LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.6 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

XAL
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

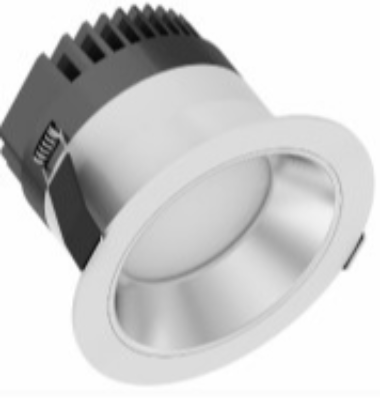

Round recessed downlight in die-cast aluminium housing, surface in traffic white finishes. 360° rotatable and 30° tiltable. Suitable for ceiling thickness of 2-25 mm, passive cooling of the LEDs through improved heat sink geometry with COB (Chip on Board) technology for maximum efficiency. No appearance of multiple shadows. IP40

DIMENSION : Ø80*H48MM
