BEGA

INGROUND UPLIGHT

OUTDOOR LIGHTING

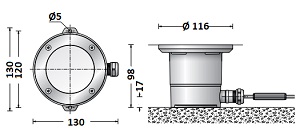

77038K3

Recessed inground uplight luminaire ,made of stainless steel housing, installation bush made of polyamide and white safety glass. Drive-over luminaire from vehicles with pneumatic tyres. Dust-tight and water pressure tight. Maximum submersion depth 20m. IP68,IK10.

Specification

Power

2.7W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

86LM

Finishing

STAINLESS STEEL MATT

IP Rating

IP68

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

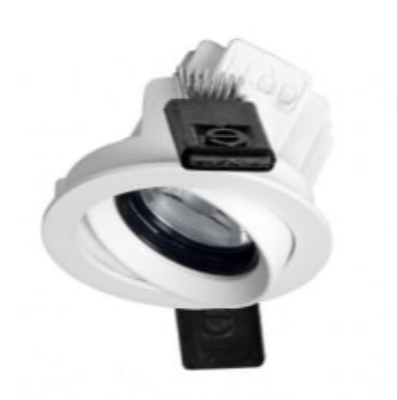

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable downlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.

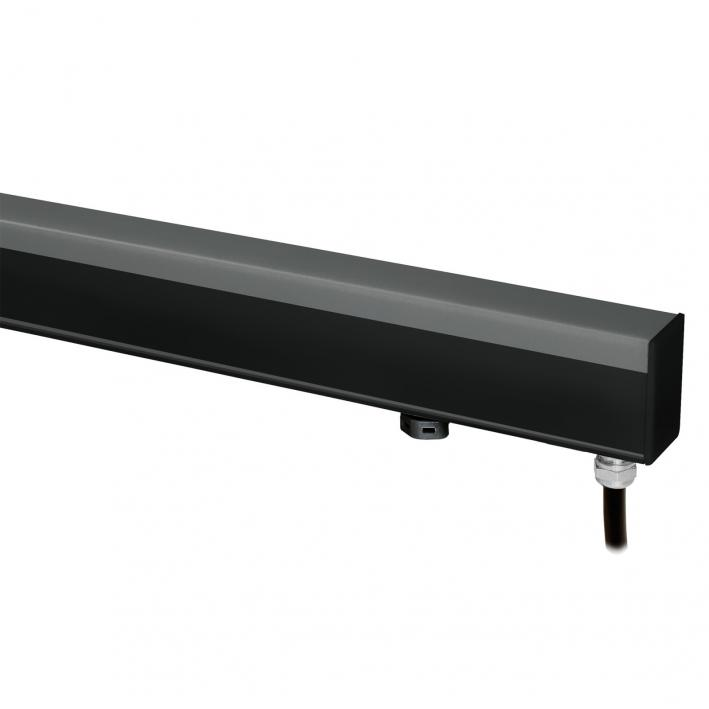

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a diffused light distribution is composed of 225 topled LEDs. The device body is made of uv resistant polycarbonate and features a black finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 1.40 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.25 m length. The device features protection class III and can be wall lights or floormounted. Compliant with the EN 60598-1 standard and its specific provisions.

MEYER

UP/DOWN WALL LIGHT

OUTDOOR LIGHTING

Housing made corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, UV stabilised, impact‑resistant polycarbonate cover, silicon gasket, with 4 stainless steel screws, mounting flange: 2 drilled holes Ø 6.5 mm, spacing 422 mm, tilt range: 120°, cable gland: PG11, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 15° / 103°, luminous flux: 2238 lm, wattage: 29 W, delivered lumens 78 lm/W, protection type IP65, protection class I, impact resistance IK10, windage area 0,06 m², dimensions (L×H×W): 470 × 47 × 135 mm, weight 2.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
