LINEALIGHT

PENDANT

INDOOR LIGHTING

76232W00

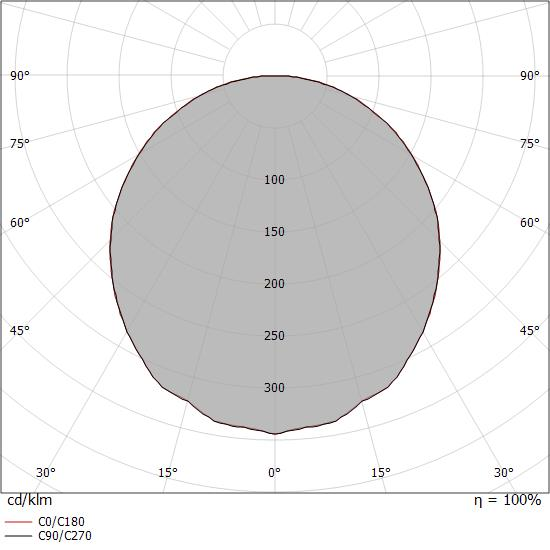

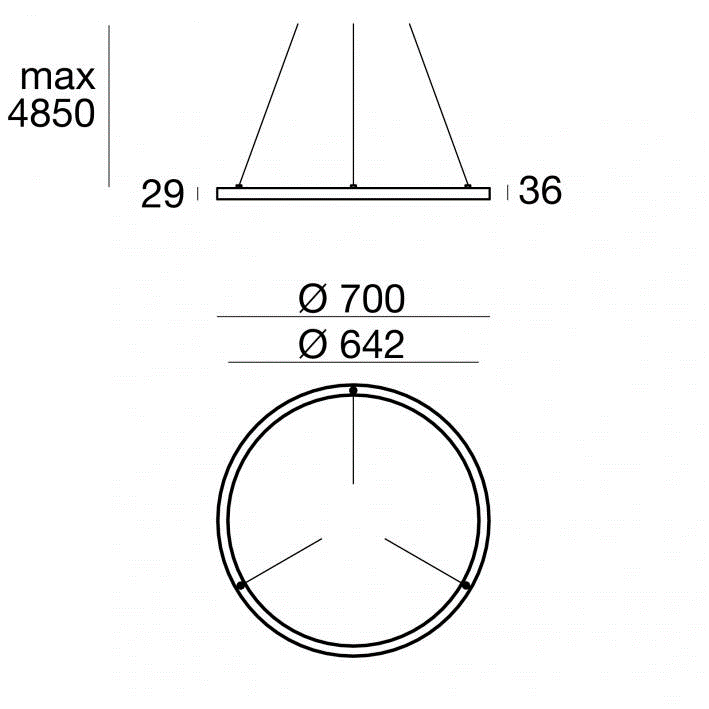

Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 371 stripled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 1.8 kg. The power supply cable is included and features a 4.85 m length. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

36W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2039LM

Finishing

BLACK

IP Rating

IP40

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

XAL

CEILING LIGHT

OUTDOOR LIGHTING

Die-cast aluminium surface round ceiling light with white powder coated. Time saving installation through snap-in mounting system. LED board highly reflective lacquered for higher efficiency. Satin PMMA cover; luminaire with 2 cable openings and plug-in terminal for through wiring. IP54 (wall mounted) and IP50 (ceiling mounted). IK07 DIMENSION : D595MM * H80MM

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is include and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98673(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

XAL

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

Luminaire housing made of extruded aluminium profile; light tight final end caps made of aluminium; no visible screws; angular design; surface jet black powder coated; suspended luminaire with 1500mm cable suspension; with integrated toolless suspension height adjustment on the luminaire; spring clip attachment to the luminaire; freely positionable; incl. feed (black); lighting profile (end cover pre-assembled) available in advance for installation, microprismatic PMMA diffuser.

LED LINEAR

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.
