LINEALIGHT

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, luminaire fixed using stainless steel spring loaded clamps, clamping range in hollow ceilings 12‑42 mm, aperture for installation Ø 125 mm, connecting terminal: 3 pole, highly efficient faceted and coated rotationally symmetrical reflector, 1 m cable, remote driver required, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 32°, luminous flux: 1869 lm, wattage: 19 W, delivered lumens 97 lm/W, protection type IP65, protection class III, impact resistance IK08, dimensions: Ø 140 mm, width 95 mm, weight 1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

The Alphabet of Light system is a language of light that continues to grow with new curved elements, developing with increasing freedom in spaces. It is a fundamental principle that generates an open system through a few basic modules. Thanks to precise geometric proportions, these modules can be combined to construct infinite structures of light, whether essential or more complex, linear or curvilinear, all environmentally certifiable with EPD (Environmental Product Declaration). The concept by BIG combines with Artemide's optoelectronic expertise to define an innovative construction principle and provide a continuous and comfortable light. It is a minimal presence that encompasses not only highly innovative optoelectronic and patented mechanical components but also management innovations. The system is controllable through the Artemide App to create freedom not only in designing geometries but also in defining dynamic performances, programmable or modifiable in real time.

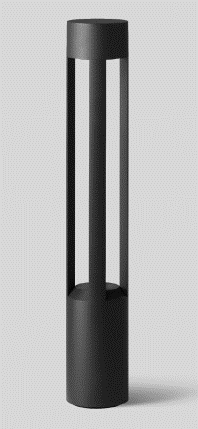

hielded bollards with wide beam light distribution for a high degree of illuminance on the ground surface. The light of the lamps is directed straight at the surface to be illuminated by a reflector. Robust luminaires that can divide up and structure outdoor spaces. For the illumination of squares, entrance areas and driveways.

Low profile recessed channel, height 13 mm; suitable for rimless installation in 12.5mm plasterboard ceilings;

specially designed trim with grooves for better adhesion of smoothing compound; suitable for wall or ceiling

mounting; surface white powder coated; easy mountng without need to cut the substructure; fall-safe light inset

made of extruded aluminium profile, can be inserted in the canal without tools by magnetic holders; side

coupled light directed downward through LGP .
