LINEALIGHT

WALL LIGHT
OUTDOOR LIGHTING
97167W07

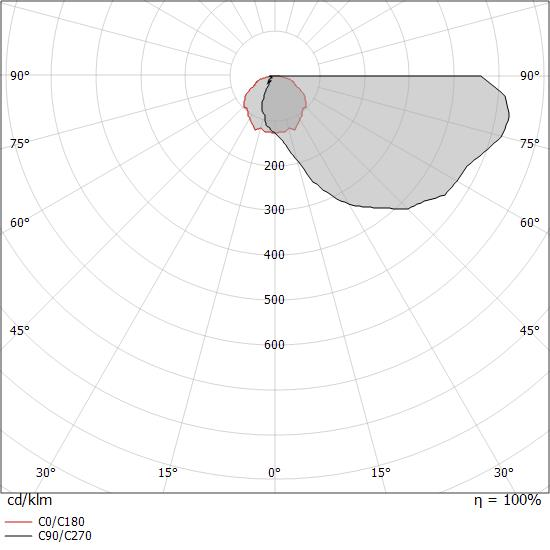

Single emission wall lights for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 12 topled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.170 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
1W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
89LM
Finishing
WHITE
IP Rating
IP66
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

SIMES
INGROUND UPLIGHT
OUTDOOR LIGHTING
Die-cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L 3 mm thick for RING or aluminium front trim for FLAT. Toughened glass diffuser 12mm thick for MICRORING, 15mm thick for MINIRING, 19mm thick for RING/MEGARING, 10mm thick for MICROFLAT, 12mm thick for MINIFLAT, 15mm thick for FLAT/MEGAFLAT. Stainless steel screws. Luminaire hard wired with single neoprene cable with cable gland. Fast connector IP68 included. Recessing box in polypropylene. Silicone gaskets.
LUCE & LIGHT
UNDERWATER LIGHT
OUTDOOR LIGHTING


LUCE & LIGHT
RECESSED DOWNLIGHT
OUTDOOR LIGHTING

Altopiano downlights expands the possibilities of ambient lighting in the hospitality and residential sectors: it combines a versatility of 3 different sizes and shape with a multiplicity of atmospheric light colours. Range from 2200K to 4000K, RGBW and Dim to Warm intensity/colour adjustment. Altopiano downlights offer great visual comfort, with their recessed optics and possibility of building in a honeycomb louvre and anti-glare shield with concentric rings, as well as a UGR 19 with the narrow, medium and wide optics.The body is made of thermally conductive technopolymer (with a thermal conductivity equal to that of stainless steel), giving it outstanding corrosion resistance. IP66.

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable square downlight luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.
