85045W12

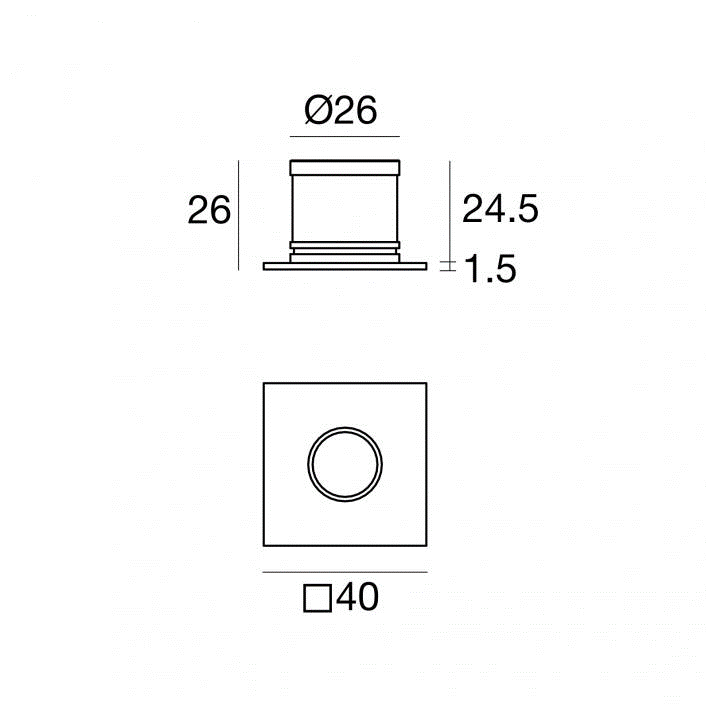

Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 powerled LEDs. The device body is made of brass and features a chrome finish, processed by means of electroplating. The ingress protection degree is IP44; the total weight is of 0.06 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be wall lights or ceilingmounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 84915(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
Specification
- Power
- 1W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 113LM
- Finishing
- CHROME
- IP Rating
- IP44
- Color Rendering
- CRI 80
- Driver
- ON/OFF DRIVER
