LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
64548W15

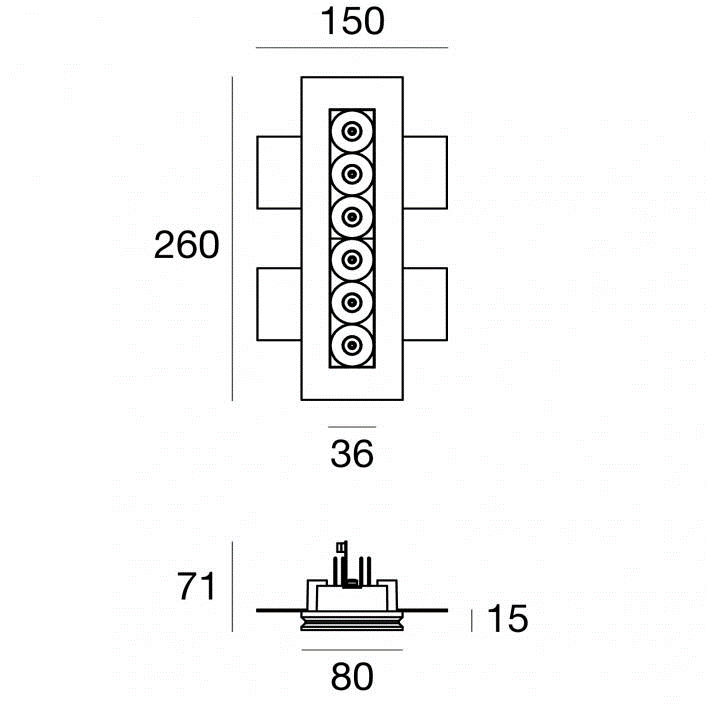

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 6 powerled LEDs. The device body is made of plaster and features a white finish; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.690 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 270 x 90 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
Specification
- Power
- 12W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 734LM
- Finishing
- WHITE
- IP Rating
- IP20
- Color Rendering
- CRI 90
- Driver
- ON/OFF DRIVER
