LINEALIGHT

Luminaire housing from extruded aluminium profi le, angular design; direct / indirect light distribution; no visible screws; designed for continuous lighting systems; surface powder coated; pendant fi tting with cable suspension; with integrated tool-less suspension height adjustment; spring clip attachment to the luminaire. Length 1756 mm | width 60 mm | height 80 mm.

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.400 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

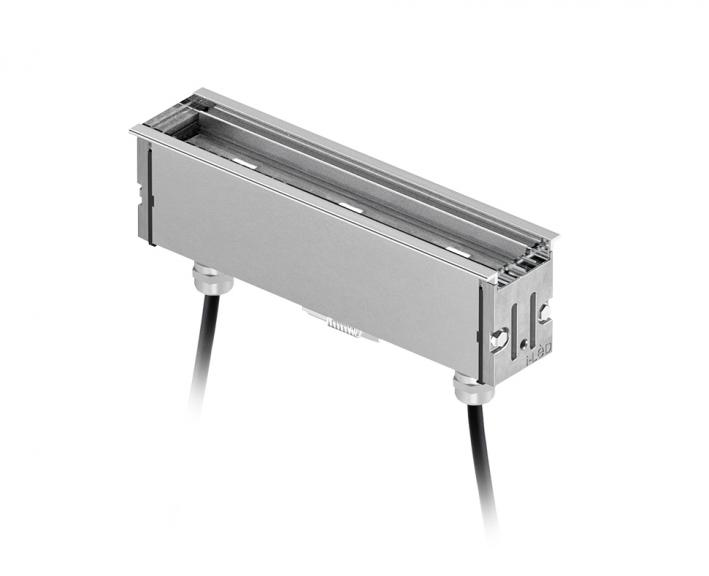

Designed for tool-free mounting in a separate frame, the black-coated polymer/metal light head rotates 360° and pivots 0-70°. It features a 1m connection cable, high-power LED module, and a black polymer lens unit with a collimating optical polymer lens, replaceable without tools. Requires ERCO Axis control gear and mounting frame (ordered separately). Protection Class III. Weight: 0.04kg.
