Product Detail | Bloxlimited

LINEALIGHT

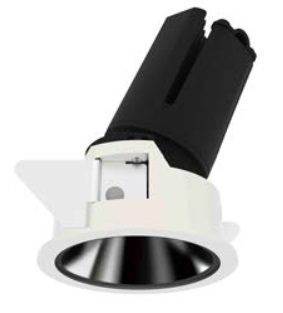

RECESSED DOWNLIGHT

INDOOR LIGHTING

80245W60

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.120 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6.5 W. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 48 mm diameter hole (in plasterboard) with an outer casing, code 89374(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

588LM

Finishing

BLACK

IP Rating

IP40

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LED LINEAR

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

XAL

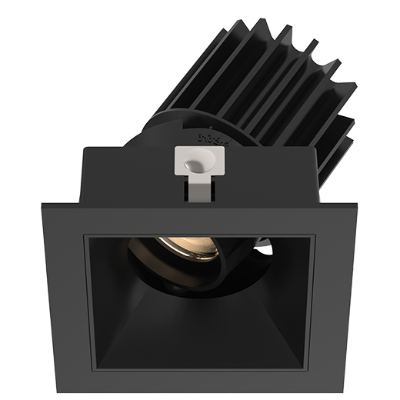

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

square spotlight element in aluminium; surface black powder coated; installation without tools in mounting set due to patented ball catch system; recessed light with wrap around edge; suitable for ceiling thickness of 2-25 mm; spotlight element height adjustable without tools: flush with the ceiling, or extended 25 mm or 35 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows

SPARK

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

Suspended Pendant light made of aluminium housing and come with 1meter wire mounting accessories. Color finish have white or black. Suitable for residential, office and retail application.

LINEALIGHT

LINEAR DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 6 powerled LEDs. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.51 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.11 m length. The device features protection class III and can be ceiling-mounted, with a 219 x 40 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
