LINEALIGHT

A series of premium recessed downlights available in various sizes, shapes, and finishing. Paired with ELR’s highly configurable LED modules, the Vasari downlight series offers a high degree of flexibility, aesthetics and functionally for the most discerning of applications

Round ceiling recessed downlight made from die-cast aluminium, surface Black Matt; powder coated, matt texture installation without tools using wire springs; suitable for ceiling thickness of 4-23 mm; recessed depth 50 mm degree of protection IP20.

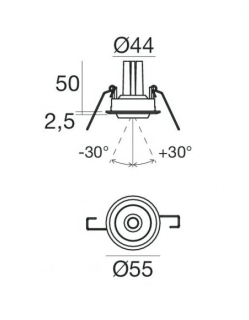

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.250 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Organic form design provides excellent glare control to minimize impact while piercing through ambient light levels to meet the highest functional requirements of architectural lighting design. Ovo adjustable series is available in 3 different sizes Ø65, Ø90, and Ø160mm, trim and trimless installation on ceiling thickness with max. 30mm. Luminaire body in cast aluminum. Regressed lamp holder position for minimum glare. rotatable horizontally 350° and vertical tilt up to 25°.
