Product Detail
Home Products Detail

Products

LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
94586W12

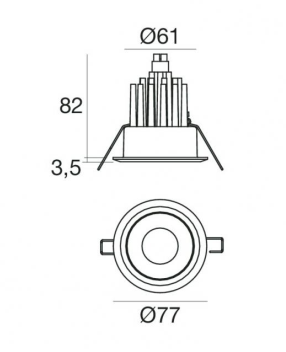

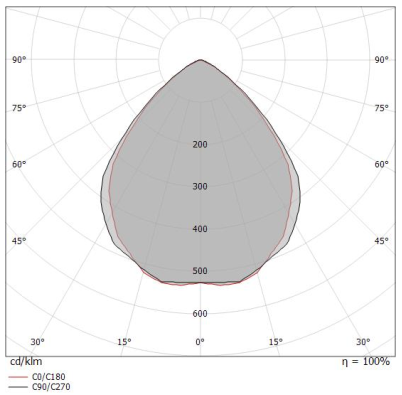

Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 4 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.24 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 65 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
12W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1197LM
Finishing
WHITE
IP Rating
IP40
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

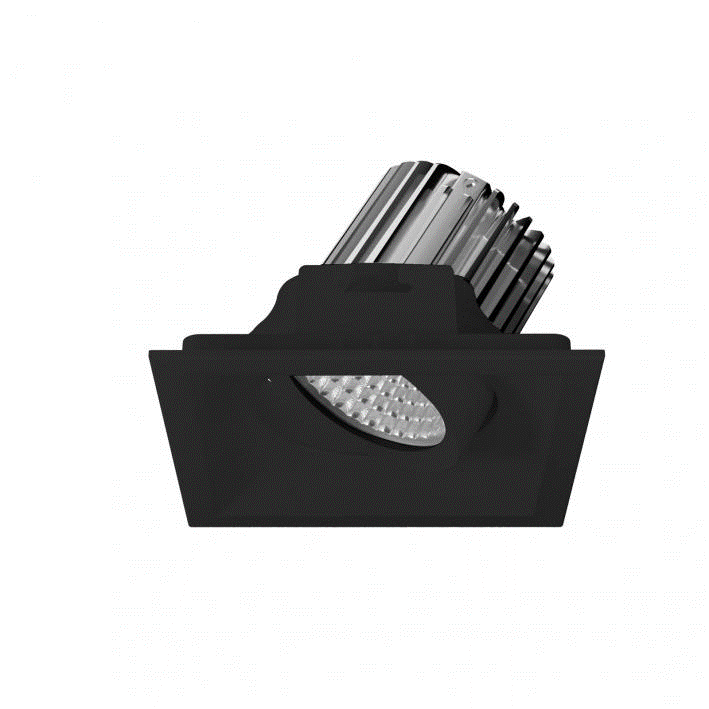

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 128 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
LUCE & LIGHT
UNDERWATER LIGHT
OUTDOOR LIGHTING


LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 127 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
FORMALIGHTING
LINEAR LIGHT
INDOOR LIGHTING

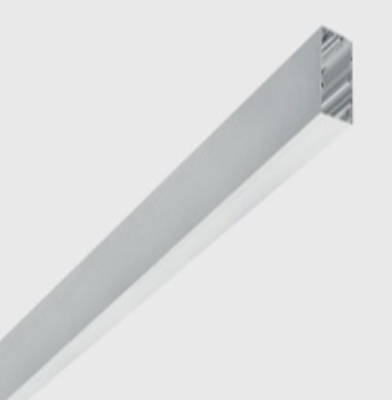

Compact linear LED light is designed to be the perfect solution for optimal display lighting that preserves product longevity by emitting a low ambient temperature to prevent damage whilst providing high-quality LED lights with high efficiency and controlled temperature. No harmful infrared or ultraviolet radiation. Highly efficient LEDs with high CRI. >50% energy saving while keeping the same illumination level. Available in different lengths from 50mm to 2030mm.
