LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

96635W60

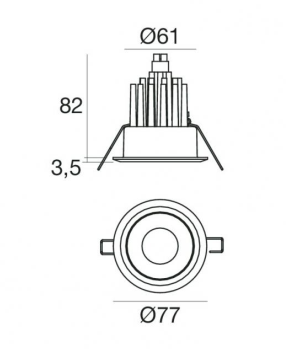

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 4 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.24 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 65 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

691LM

Finishing

WHITE

IP Rating

IP40

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

Round recessed spotlight in die-cast aluminium; surface black; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 85% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 15° beam; degree of protection from below IP40 (from above IP20); PC2 220-240V; incl. converter, non dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

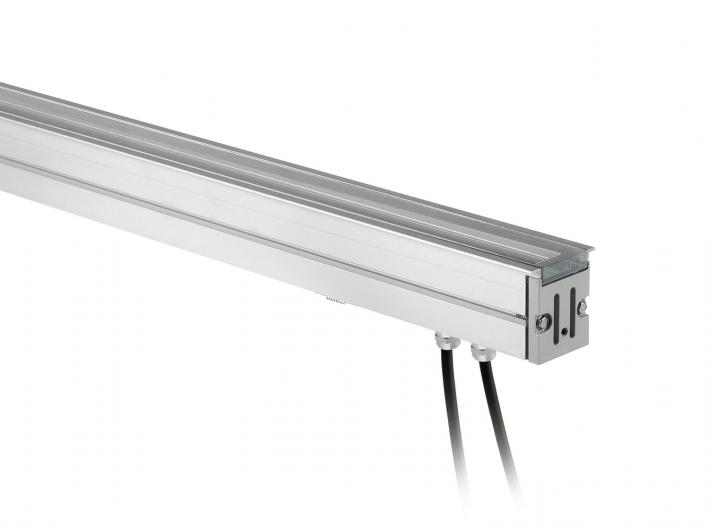

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.010 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99764 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

FLOS

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

Adjustable luminaire with LED for indoor use, suitable for wall installation. The body can be extracted from the installation surface for 60º orientation on the vertical axis and 180º on the horizontal axis. Integrated Full cut-off optical group. The remote power supply (not included) must be placed in an accessible location. The installation frame must be ordered separately.

PROLICHT

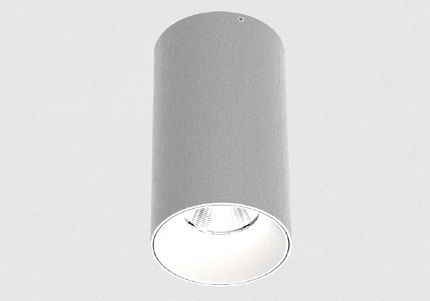

CEILING LIGHT

INDOOR LIGHTING

The surface luminaire INVADER ON from the familiy INVADER consists of aluminum. With 2 powder coated options 625 colour combinations can be achieved. The ballast is integrated and allows for an operation with 220-240V (50/60Hz). INVADER ON (# 320-0010) ist not dimmable (on/off). The spot with direct illumination corresponds to protection class SK1 at IP20. A PROLICHT lense pack is optionally available.
