LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

90891W60

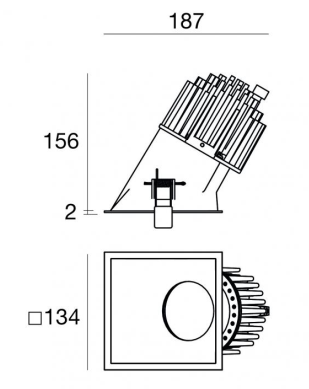

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 128 x 128 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

25W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1006LM

Finishing

BLACK

IP Rating

IP44

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

LIGHTFORMS

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Cygnus came about due to demand for a track fitting following the style and theme of all our designs, ie: simple, strong and well finished. Cygnus utilises the LEDil reflectors for a perfect and reliable light shape. The extruded aluminium housing and is available in our full range of finishes. Cygnus is supplied as standard with a Tridonic in track adapter, so the control gear is integral. Other adapters are available, but should be specified to the factory.

FLOS

TRACKLIGHT

INDOOR LIGHTING

Projector to be installed on threephase track with LED light source. Built-in 220240V, 50-60Hz power supply. All finishes come with black track adapter, arm and back of the head. In the “all white” versions the track adapter, arm and back of the head come in white. The display is always offered in high loss technical black antiglare finish.

LED LINEAR

WALLWASHER

OUTDOOR LIGHTING

Compact luminaire with a clear encapsulation and reflectors for wall washing in outdoor areas. Alanod reflector technology for an excellent color mixing and homogeneous wall wash effect. Polyurethane is utilized in Xoolum R Wall Wash to make it more resistant to impact from salt water UV-light and solvents. Compact design and simple surface mounting enabling a discrete installation in the ceiling.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a elliptic light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 5.5 kg. The total absorbed power is 51 W. The power supply cable is included and features a 0.17 m length. The device features protection class I and can be floor-mounted with an outer casing, code 99771 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
