SPARK

Direct light luminaire, designed to use monochrome LED lamps, DALI 48Vdc dimmable with searching and addressing function. Ceiling-, wall- or surface-mounted. Consists of a body and supports for installation, to be ordered separately. The body is made of extruded aluminium and includes die-cast aluminium end caps with 50/60 Shore A silicone seals. It is subjected to a multi-step, pretreatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nanostructured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone.

 Single emission submerged for outdoor application. The warm white LED light source with a diffused light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 249 lm, with a 124.5 lm/W nominal luminous efficacy. The device body is made of stainless steel and features a steel finish, processed by means of shot peening. The ingress protection degree is IP68; t

Luminaire made of copper, brass and stainless steel. Opal glass with screw neck. Silicone gasket. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz. Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK04. Protection against mechanical impacts < 0.5 joule r – Safety mark, c – Conformity mark.

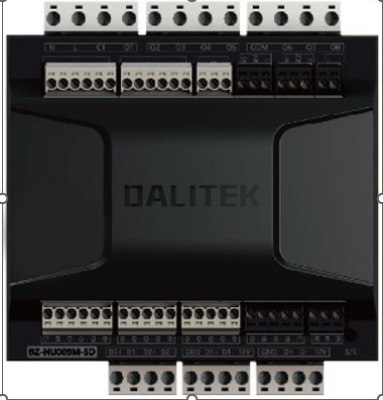

Nucleus is a series of fully programmable DIN bar controllers capable of offering significant energy savings and managing light circuits, curtain management systems, splitters, and fan coils, access control systems based on RFID

or BLE, together with the most well-known room functions such as DnD, the MUR, butler calls, etc. The controller provides a unique level of scalability with over 15 plug and play gateways and expansions which can be

easily connected to the main unit to satisfy a broad range of installation requirements. Complex scenario algorithms can be configured, such as “Welcome” and “Return to Room” based on occupancy, time of day, and other statuses.
