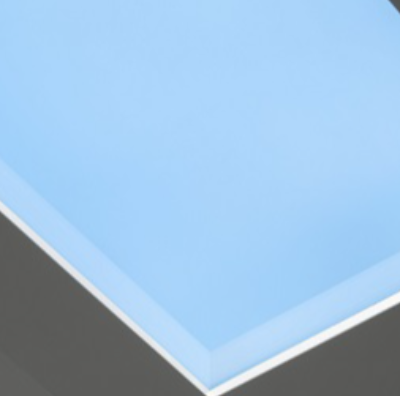

CoeLux HT25 Mini is a recessed compact system that artificially reproduces natural light from the sky and the sun. It includes a LED light source, optical components and a CoeLux Classic panel, all housed in a metal structure. Skylight dimensions: 492 x 233 mm (19.3 x 9.1 in). Appearance of the sun: visible, slightly frosted. Beam direction: zenith. Appearance of the sky: clear. Frame: included, trim finishing (mandatory for optimal yield). It may also be mounted on normally inflammable surfaces. It is recommended to position the power supply remotely. The ingress protection degree is IP65.

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different types of bean angles.

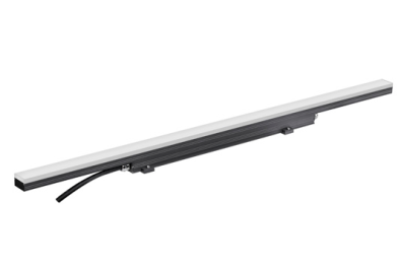

Single emission lines for outdoor application. The warm white LED light source with a elliptic light distribution is composed of 9 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 5243 lm, with a 114.0 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67, IK08.

The module realizes the opening and closing control ofsixcircuits by controlling six20A single pole single throw (SPST) relays, and various logic timing control can berealized through configuration. The module has an internal temperature sensor to monitor the operating temperature to ensure safety.The module is compatible with other a dry contact input module.The module can form a control system with panel, clock, sensor and other equipmentthrough RS485 bus.
