LINEALIGHT

Introducing a new addition to the Glare-less Spotlight family: an ultra-compact 30mm spotlight with recessed flange and track options.

The versatile mounting types and luminaires of the IMAGINE family offer variable and professional lighting solutions for shops, hotels and restaurants. IMAGINE is flexibly configurable, technically sophisticated and perfect for integrating into any room design. The IMAGINE downlights are available as round recessed versions or as round/square trimless fitting.

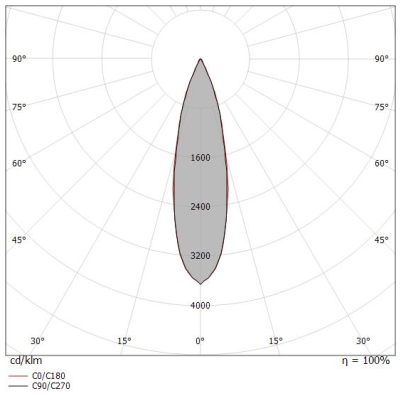

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.

Luminaire made of copper, brass and stainless steel. Antique glass Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection, Earth conductor connection, Lampholder E 27. Safety class I. Protection class IP 23. Protected against granular foreign bodies. > 12 mm and showers up to 60°. r – Safety mark. c – Conformity mark.
