LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

81492W30

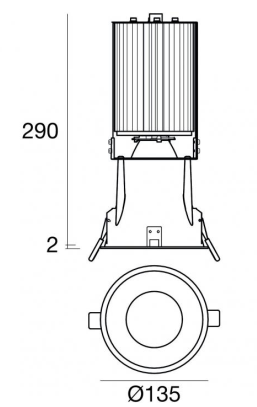

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.860 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 127 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

45W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2103LM

Finishing

BLACK

IP Rating

IP44

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

FORMALIGHTING

SPOTLIGHT

OUTDOOR LIGHTING

Recessed/surface luminaire with light housing in aluminium extrusion inclusive of with toughened safety glass, weatherproof durable silicone gasket and external screws made of stainless steel. Ring and back plug cover in cast aluminium. Base and bracket in cast aluminium. Front cover designed to avoid accumulation of dust and water. Ceiling installation via clamping wings for ceiling thickness 1 to max.30mm. Surface version tiltable vertically 0-140° and rotable horizontally 350°, inclusive of mechanical locking system to ensure aiming stability.
