LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING

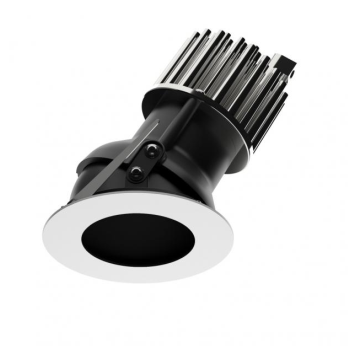

80021W15
Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
4W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
189LM
Finishing
WHITE
IP Rating
IP44
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

MEYER
SPOTLIGHT
OUTDOOR LIGHTING
Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket powder coated aluminum with tilt scale: 2 drilled holes Ø 7 mm, spacing 40 ‑ 60 mm, 1 centre hole Ø 21 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 22°, luminous flux: 1445 lm, wattage: 55 W, delivered lumens 26 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.462 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 95 mm diameter hole (in plasterboard) with an outer casing, code 83064 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
SPOTLIGHT
INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 98; the source luminous flux is 2263 lm, with a 141.4 lm/W nominal luminous efficacy.

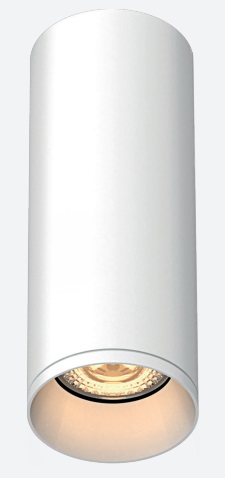

ELR
SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING

Compatible with 100CLO, 100CLE and 100PLE series LED modules.Colour temperature options 2700K, 3000K, 4000K, 5000K, WarmDim. Colour rendering index 85 or 95. Up to 50,000 hours L80 lamp life with LM80 tested LED chip packages. Beam pattern options ClassicPRO 12, 20, 35, 60 Luminous flux 1063lm to 3000lm depending on LED module.Supplied with non-dimmable or phase0-10VDALI dimmable LED driver. Automated Thermal Protection System. ComfyEYE, reduced flicker percentage, Interchangeable LED module system, Optional colour and light effect filters, and honeycomb anti-glare louvre, For the latest specifications please refer to the website. The ingress protection degree is IP40.
