Product Detail | Bloxlimited

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

82470W07

Single emission downlights for indoor application. The warm white LED light source with a adjustable wall washer light distribution is composed of 8 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.36 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 121 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

17W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

281LM

Finishing

BLACK

IP Rating

IP44

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

NEKO

RECESSED DOWNLIGHT

INDOOR LIGHTING

Round spotlight for recessed installation made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; LED 11W; measurement Ø71mm; ceiling cutout of Ø75mm with a trimless mounting; luminaire's weight is approximately 200g; rotation 355° and pivot max. 18°; CCT 3000K with an LED Output of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection IP20 (LED Module IP54)

MEYER

FLOODLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, 2 drilled holes Ø 7 mm, spacing 30 ‑ 35 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 1729 lm, wattage: 23 W, delivered lumens 75 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,013 m², dimensions (L×H×W): 126 × 97 × 126 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

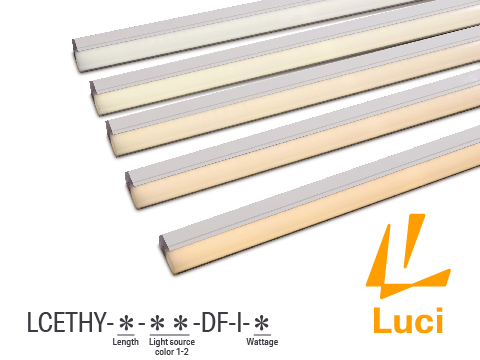

LUCI

LINEAR GRAZER

OUTDOOR LIGHTING

Wall grazing light for organic design. Bendable Horizontally and Vertically in R500mm. Adjustable bracket and Shield options available

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

Thanks to enormously simplified installation and innovative operation options from the waterside, the largest recessed spotlight available for swimming pools now facilitates professional lighting of competition pools. With a powerful output of approximately 19,000 lumens and no glare, its light ensures the safety of athletes. Thanks to the unique environmentally friendly light spreading characteristics, no light is directed upwards, but always to the width and depth towards the pool floor. Compared to the predecessor model, the spotlight requires more than 70 percent less installation space.
