Products
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
81274W30

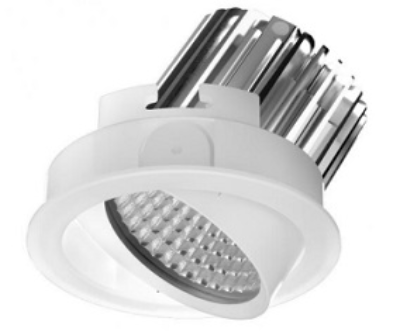

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.277 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 70 mm diameter hole (in plasterboard) with an outer casing, code 83064 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
Specification
- Power
- 8W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 279LM
- Finishing
- WHITE
- IP Rating
- IP44
- Color Rendering
- CRI 92
- Driver
- ON/OFF DRIVER
See more
