81267W60

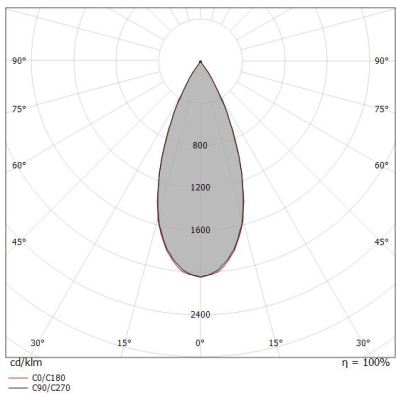

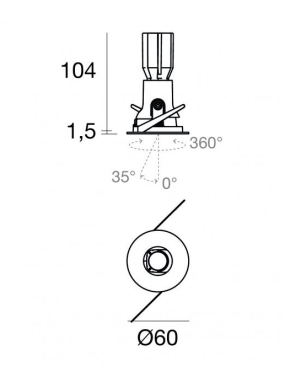

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 56 mm diameter hole (in plasterboard) with an outer casing, code 83063 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
4W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
181LM
Finishing
BLACK
IP Rating
IP44
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

WE-EF
BOLLARD
OUTDOOR LIGHTING
IP66/IP67. Class I. IK10. Marine-grade, all-aluminium construction. Pole section features galvanised steel reinforcement core. 5CE superior corrosion protection including PCS hardware. RFC™ Reflection Free Contour main lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering.
BEGA
WALL LIGHT
OUTDOOR LIGHTING

Luminaire made of copper and stainless steel. Opal glass with screw neck. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection Lampholder E 27. Safety class I. Protection class IP 44. Protected against granular foreign bodies, > 1 mm and splash water, r – Safety mark c – Conformity mark.

LUTRON
CONTROL SYSTEM
CONTROL SYSTEM

The Athena Edge processor provides control andcommunication to Athena system components.The Ethernet links allow communication to the Athenadesigner software, integration with third-party systems,and communication between multiple processors.Athena Edge processors may be connected using eitheran Ethernet hub/switch or router, or by using Ethernetdirectly from a PC to the processor(s). All processors on aproject must be connected to a single network.

ENDO
SPOTLIGHT
INDOOR LIGHTING

Introducing a new addition to the Glare-less Spotlight family: an ultra-compact 30mm spotlight with recessed flange and track options. DIMENSIONS : L:100 W:28 H:18
