LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
90647W15
Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is notprovided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 99847 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions

Specification

Power
4W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
192LM
Finishing
WHITE
IP Rating
IP44
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

FORMALIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING
Recessed luminaire with round mounting trim in cast aluminium with springs for trim installation on a ceiling thickness of 1-25mm. Zero In & Out is available in Dia 40 or 66mm. The fully retractable light head is tillable up to 90° and rotatable horizontally 355°. Its unique pull-down mechanism, enables it to function as either a downlight or an exposed lamp able to emulate a surface or track fixture. Bean angle avaiable 11°. 16° and 32°.
LINEALIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING

Single emission projectors for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs . The luminaire body is made of aisi 316 steel and features a steel finish, processed by means of electropolishing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68.IK10.

FORMALIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING
LED Built-in with body - High Power LED - Power LED. 3-step MacAdam
LIGHTFORMS
WALL LIGHT
INDOOR LIGHTING

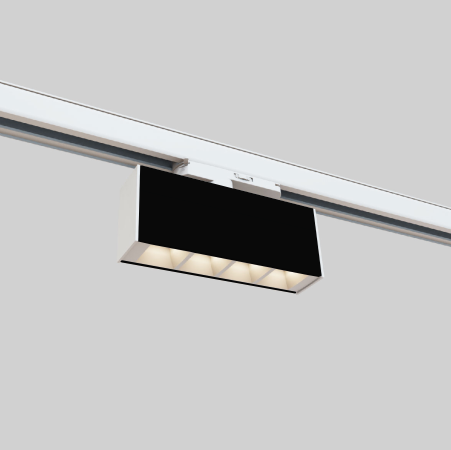

Cygnus came about due to demand for a track fitting following the style and theme of all our designs, ie: simple, strong and well finished. Cygnus utilises the LEDil reflectors for a perfect and reliable light shape. The extruded aluminium housing and is available in our full range of finishes. Cygnus is supplied as standard with a Tridonic in track adapter, so the control gear is integral. Other adapters are available, but should be specified to the factory.
