Product Detail | Bloxlimited

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

90667W30

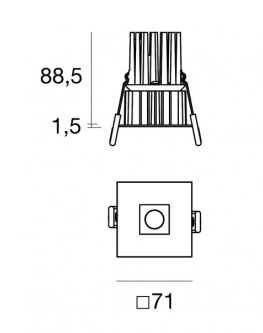

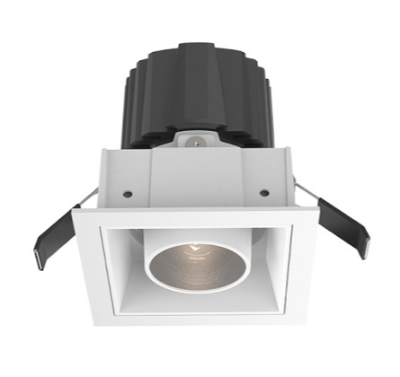

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.192 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

283LM

Finishing

BLACK

IP Rating

IP44

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

LUCI

LED STRIP

INDOOR LIGHTING

LED luminaire come with 2 types of LED pitch 7.1 or 17.8mm for profile and cove lighting. 5 types of wattage 2W/m to 15W/m in same LED pacakge to match CCT. High efficient LED package achieving up to 185 lm/W.

BEGA

POLE LIGHT

OUTDOOR LIGHTING

The luminaire consists of aluminium profiles, cast aluminium and stainless steel Colour graphite or silver Pole with laminated wood in accordance with DIN EN 14080 and aluminium Laminated wood made of finger-jointed pine slats Metal components are powder coated and painted Safety glass with optical structure Reflector made of pure anodised aluminium Fixing of the light building element with anchorage unit 71140 or screw-on base 70 833 for bolting onto a foundation (see accessories).

SIMES

BOLLARD

OUTDOOR LIGHTING

LIGHTING PERFORMANCE Each spotlight is housed inside a head that can be controlled independently and freely rotated on its axis. Through fixing grains, it can be locked in the desired position. Spotlights integrated in the head can, in turn, be tilted up to a maximum of 90º horizontally and direct the beam downwards or be pushed forward to cover longer distances. The head can also be turned upside down. This additional degree of freedom allows to also direct the beam upwards so to light up, as e

BEGA

BOLLARD

OUTDOOR LIGHTING

hielded bollards with wide beam light distribution for a high degree of illuminance on the ground surface. The light of the lamps is directed straight at the surface to be illuminated by a reflector. Robust luminaires that can divide up and structure outdoor spaces. For the illumination of squares, entrance areas and driveways.
