LINEALIGHT

The simple geometric shape of the spherical diffuser makes this an iconic product and ensures uniform diffusion of light through the acid-etched blown glass. The 25, 35 and 42 cm versions are also suitable for outdoor use.

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

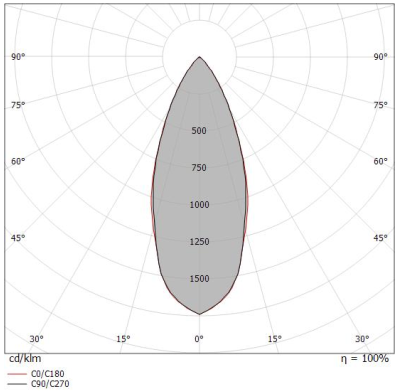

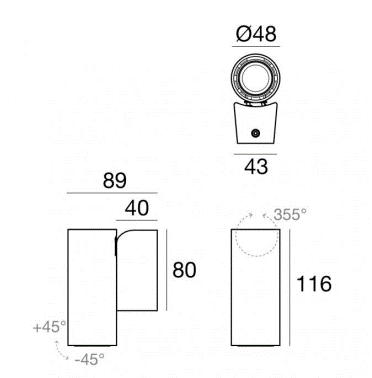

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.120 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6.5 W. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 48 mm diameter hole (in plasterboard) with an outer casing, code 89374(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); Power consumption: 20W; Power supply: 24Vdc; Lumen output at source: 1021 lm, R: 146 lm G: 329 lm B: 117 lm W: 429 lm (4000K); Delivered lumen output: 656 lm, R: 101 lm G: 204 lm B: 75 lm W: 276 lm (4000K, 20°); 3 groups of 4 power LEDs, 50 000h L85 B10 (Ta 25°C); LED colour: RGBW; Optics: 61°
