SPARK

Surface spotlight to be installed on ceiling/wall with LED light source. Non-regulable 220-240V, 50-60Hz power supply integrated in luminaire body.

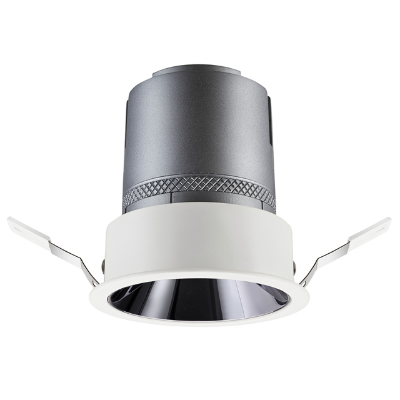

he Soft XL recessed Ø80mm luminaire with an elegant small aperture made from machined aluminium with anti-glare deep set sculpted design for high visual comfort giving a soft glowing effect. Available in narrow and medium-light distribution beams. Reduced glare design with unique, elegant small aperture. Flawless finishes available on all components.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 46°, luminous flux: 370 lm, wattage: 6 W, delivered lumens 62 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,009 m², dimensions: Ø 100 mm, width 80 mm, weight 1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

BIONIQ has been developed for lighting designers and architects who demand the highest standards in technology, design and precision. State‑of‑the‑art LED technology combined with lens‑based optics delivers exceptionally controlled, high‑quality light. High luminous efficacy, beam angles ranging from Super Spot to Very Wide Flood, 30° tiltability and 350° rotation provide maximum creative freedom. IP65 as standard, tool‑free exchange of lenses and accessories and excellent glare control.
