SPARK

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

SPK5131-12W-24D

Surface mounted downlight, luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.

Specification

Power

12W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

857LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

ELR

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

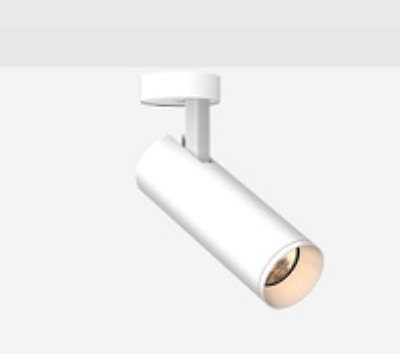

SNOOP a series of track, surface or pendant mounted adjustable luminaires available in different track configurations. Incorporating ELR’s signature modular concept design, LED modules 35P-BM DAPPLE are fully interchangeable with choices to flexibly illuminate designated areas and objects ideally for accent lighting applications.

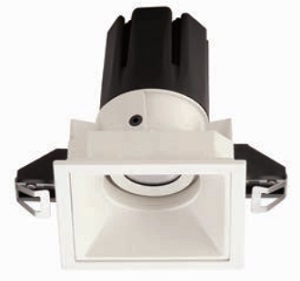

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Small recessed adjustable downlight with snoot. Luminaire body made of aluminium material and white powder coated on surface finishes.

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 2 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: PG11, connecting terminal: 3 pole, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 50° / 72°, luminous flux: 2853 lm, wattage: 28 W, delivered lumens 102 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 140 × 175 × 190 mm, weight 2.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
