Product Detail
Home Products Detail

Products

BEGA

FOOT LIGHT
OUTDOOR LIGHTING
22369K3
Recessed luminaire for glare-free lighting of floor spaces from a low mounting heifgt.LED recessed luminaire without power supply unit luminair made of cast auminium, aluminium and stainless steel. IP65,IK08.

Specification

Power
2.7W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
97LM
Finishing
GRAPHITE
IP Rating
IP65
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

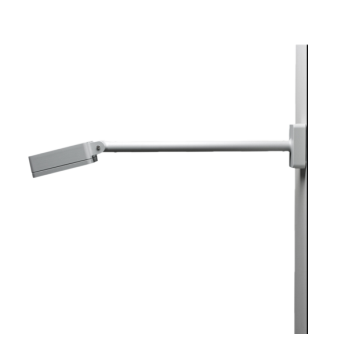

MEYER
PROJECTOR LIGHT
OUTDOOR LIGHTING
Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, wall box: 2 drilled holes Ø 7 mm, spacing 110 mm, cable entry 7 – 10 mm, for recessed or surface mounted cable, tilt range: 200°, cable gland: M20, connecting terminal: 3 pole, highly efficient aluminum reflector with satin finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 92° / 108°, luminous flux: 2870 lm, wattage: 26 W, delivered lumens 110 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 183 × 70 × 183 mm, weight 3.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
DALITEK
CONTROL SYSTEM
CONTROL SYSTEM

6 channels 10A/CH switch output, 6 channels 0-10V control signal. Switch relays and 0-10V channels can be controlled separately. 220V ± 10% 50Hz Single phase 0.1A. Phase-independent. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure. DIN rail installation

MEGAMAN
WALL LIGHT
INDOOR LIGHTING

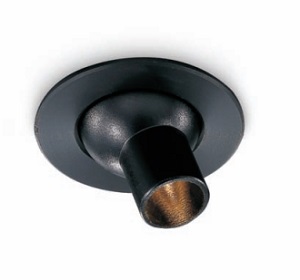

SPARK
DISPLAY LIGHT
INDOOR LIGHTING
Recessed mount aluminium housing display light in anodized black finish. Cut-out 28mm dia hole. Suitable for retail application on all the display shelf, showcases etc. Available Black, White and Silver finishing.
