SPARK

SURFACE TRACKLIGHT

INDOOR LIGHTING

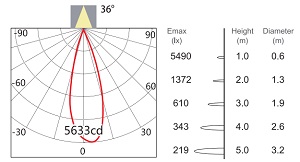

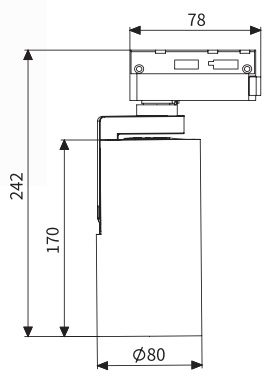

SPK9211-20W-36D

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.

Specification

Power

20W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1944LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

NEKO

SPIKE LIGHT

OUTDOOR LIGHTING

Projector Light round made of aluminium; external 24VDC LED Driver is required; Compatible with On-Off. System Power 12W; dimensions Ø84mm x 117mm; luminaire's weight is approximately 1150g; CCT 2700K with an System Output of 850lm; decent color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CREE LED Chips; 5 years warranty; beam characteristic with 24° beam angle; UGR<19; degree of housing protection IP67; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician; including installation stake

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60‑100mm, adjustable aluminum mounting base, powder coated: 2 drilled holes Ø 9mm, spacing 75mm, 1 centre hole Ø 17mm, tilt range: 205°, cable gland: M20, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 85, 2 SCDM, service life L90/B10 > 50.000 h, luminous flux: 2550 lm, wattage: 26 W, delivered lumens 98 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 184 × 70 × 184 mm, weight 2.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Luminaire made of aluminium alloy, aluminium and stainless steel Crystal glazing, Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@. Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit, 220-240 V x 0/50-60 Hz, DC 176-264 V. DC Start ≥ 198 V, Safety class I Protection class IP 44, Protected against granular foreign bodies > 1 mm and splash water, r – Safety mark, c – Conformity mark.
