Product Detail | Bloxlimited

SPARK

WALLWASHER

INDOOR LIGHTING

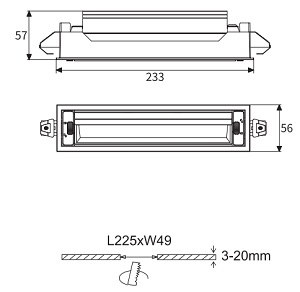

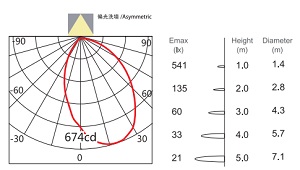

SPK1805-20W

Recessed linear wallwasher, luminaire body made of aluminium housing with white powder coated trim finish. Black finish available upon request.

Specification

Power

20W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1036LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

TRAXON

CONTROL SYSTEM

INDOOR LIGHTING

The Lighting Control Engine 3 fx (LCE3FX) serves as a high performance server for controlling large lighting projects, with pre-installed e:cue SYMPHOLIGHT and Lighting Application Suite (LAS). As a central control unit, this versatile light control server orchestrates all devices and lights within a project. The LCE3FX has integrated digital dry contacts, two single-pole relay outputs and support for a wide range of Ethernet-based protocols. Additionally, Emotion FX video mixing is fully supported in the LCE3FX version. Shows and light scenes can be controlled with the internal web server via mobile devices, web browsers or via cloud applications. A built-in status display on the front shows system and software messages. The LCE3FX is the ultimate server solution for any demanding lighting project.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99762 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

TRAXON

WALLWASHER

OUTDOOR LIGHTING

The Traxon Linear Go Midi is a DC line powered exterior luminaire used to distinguish facades, walls, and architectural landmarks with a powerful, even color wash effect. Linear Go’s high-value design features efficient electrical

and optical systems, making it ideal for budget-conscious projects. IP66, IK06

DIMENSION : 1200*38*76MM

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with three medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
