SPARK

RECESSED DOWNLIGHT
INDOOR LIGHTING

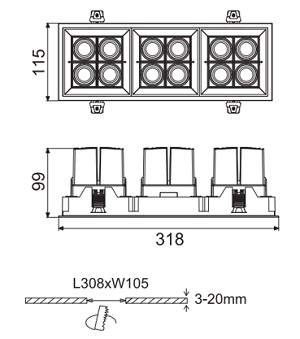

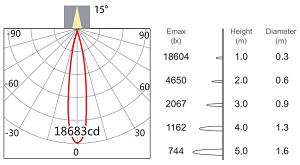

SPK2613-60W-15D

Recessed fixed triple downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector come with Chrome black, White and Silver finish. Honeycomb accessory available upon request.

Specification

Power
3*20W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2871LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

ELR
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
Recessed round pinhole downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 83mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional 40 linear lens, colour, light effect filters and honeycomb and anti-glare louvre.
VDA
CONTROL SYSTEM
INDOOR LIGHTING

Nucleus is a series of fully programmable DIN bar controllers capable of offering significant energy savings and managing light circuits, curtain management systems, splitters, and fan coils, access control systems based on RFID

or BLE, together with the most well-known room functions such as DnD, the MUR, butler calls, etc. The controller provides a unique level of scalability with over 15 plug and play gateways and expansions which can be

easily connected to the main unit to satisfy a broad range of installation requirements. Complex scenario algorithms can be configured, such as “Welcome” and “Return to Room” based on occupancy, time of day, and other statuses.


CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 44 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
