SPARK

The Ethernet Processor Module is an ultra compactDIN rail mounted unit with connections for anEthernet gateway, an M-BUS network and an RS-232port.Using Ethernet you can connect separate M-BUSnetworks together via a dedicated TCP/IP backbone or the shared building IT network.RS-232 and Ethernet facilitate integration with AV and building control systems.Web based programming and app control are available when connected to a network.

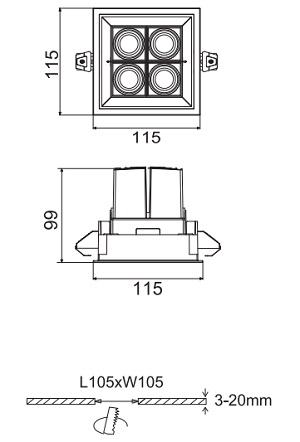

The Spotify Concave Square series is versatile downlights with high-definition optics and advanced LED technology delivering optimal visual comfort. Available in 76x76 and 100x100mm, trim and trimless versions with tools-free interchangeable optics accessories, it is fully adjustable with vertical tilt 0°-35° inside the ceiling level and rotates 355°. Developed as an ECO design for the circular economy, with its modularity, interchangeable optics and accessories, and toolfree mounting. Application areas: High-end residential and retail projects, hotels, museums, and galleries. The color temperature avaiable 2700k,3000k,3500k and 4000k.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, with partial frosting for uniform light diffraction and dark silk‑print, silicon gasket, closure with 4 stainless steel screws, wall bracket: 2 drilled holes Ø 7 mm, spacing 35 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, luminous flux: 1964 lm, wattage: 28 W, delivered lumens 70 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,032 m², dimensions (L×H×W): 472 × 50 × 62 mm, weight 2.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Flexible Slim Neon strip Horizontal bend available CCT from 2700K, 3000K and 4000K. Able to work with dimming and non-dimming driver. Accessories come with end cap, aluminium clip, flexible profile or rigid aluminium profile.

DIMENSION : (L)1000*(W)4*(H)10mm
