LINEALIGHT

CEILING LIGHT
INDOOR LIGHTING
82942W07

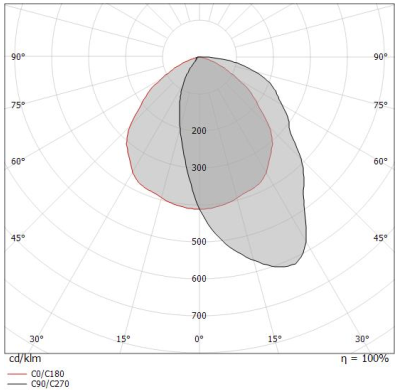

Single emission downlights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 12 powerled LEDs with CCT of 3000 K and a CRI 92; the source luminous flux is 3917 lm, with a 120.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 1 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 32.5 W. The power supply cable is included and features a 0.11 m length. The device features protection class III and can be ceiling-mounted, with a 432 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
33W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1973LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

FORMALIGHTING
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
Logica is a round recessed outdoor ceiling lighting featuring minimal glare and light dispersion, housing in aluminum extrusion. It integrates toughened safety glass and a weatherproof long-lasting silicone gasket that guarantees durability and excellent dust and water protection (IP66). Easy installation via clamping wings for ceiling thickness 1 to max 30mm, with aluminium or stainless trim.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Single emission recessed downlights for indoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.

WE-EF
SPOTLIGHT
OUTDOOR LIGHTING
IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. DALI Interface. For 2200 K version available on request.
WE-EF
SPOTLIGHT
OUTDOOR LIGHTING
IP66, Class III. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Electronic control gear in separate gear box (constant current), prewired. Gearbox to be ordered separately. One factory installed flange plug M8 x 1.5. Cable length 3.0 m. CAD-optimised optics for superior illumination and glare control. Factory-installed LED circuit board. Maximum one internal optical accessory possible. To be specified at time of ordering.
