IGUZZINI

RECESSED DOWNLIGHT
INDOOR LIGHTING

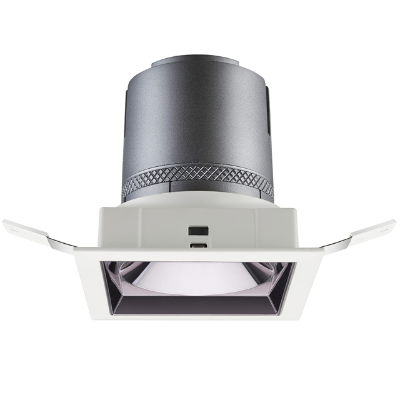

LASER BLADE XS_QI84_3000K-42°

Square miniaturised recessed luminaire for a single LED lamp - fixed optic. Despite the ultracompact size of the product, the patented technology of the optic system guarantees an efficient luminous flux and a high level of controlled glare visual comfort. Main body with die-cast zamak radiant surface, minimal (frameless) version for mounting flush with the ceiling. For recessed installation in a false ceiling a specific adapter is required that is available with a separate item code.

Specification

Power
2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
160LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

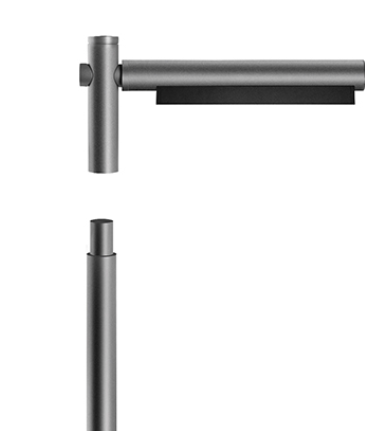

LINEALIGHT
SURFACE MOUNTED DOWNLIGHT
OUTDOOR LIGHTING


XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four spot round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 15°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
LIGHTFORMS
SURFACE MOUNTED LIGHT
INDOOR LIGHTING
A super compact cylindrical light source with a huge range of optical options. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine - but always in the classic and clean cylindrical form. Control gear is generally always integral, but this may be restricted with certain outputs, control types and additions. But we can always work this out for you.
ERCO
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

The black powder-coated cast aluminum housing doubles as a heat sink, with a 0°-30° tilt and 850mm connection cable. It features a 360° rotatable fixing ring, expanding spring mounting, and an ERCO Casambi control gear. The high-power LED module includes a color mixer, collimating lens, and Darklight optical polymer lens with a 40° cut-off. Controlled via the Casambi app (BLE). Approved for emergency lighting (IEC/EN 60598-2-22). Protection Class II. Weight: 0.70kg.
