Products
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
64540W30

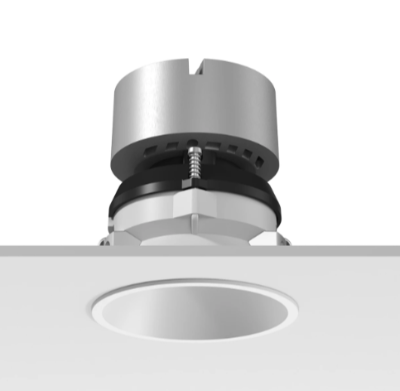

Single emission downlights for indoor application. The warm white LED light source is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 537 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.215 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 113 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
Specification
- Power
- 6W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 500LM
- Finishing
- BLACK
- IP Rating
- IP20
- Color Rendering
- CRI 80
- Driver
- ON/OFF DRIVER
