LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

64540W15

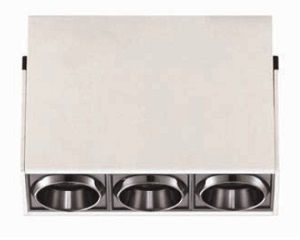

Single emission downlights for indoor application. The warm white LED light source is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 537 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.215 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 113 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

360LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

NEKO

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Round recessed downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; LED 9W; measurement Ø110mm; narrow mounting trim with a cutout of Ø100mm; luminaire's weight is approximately 420g; CCT 3000K with an LED Output of 1300lm, decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic wit 50° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP54)

SPARK

RECESSED DOWNLIGHT

INDOOR LIGHTING

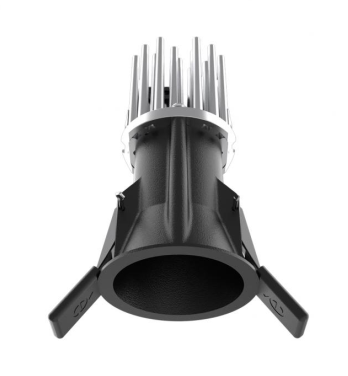

Recessed downlight with adjustable snoot, made of aluminium material.

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

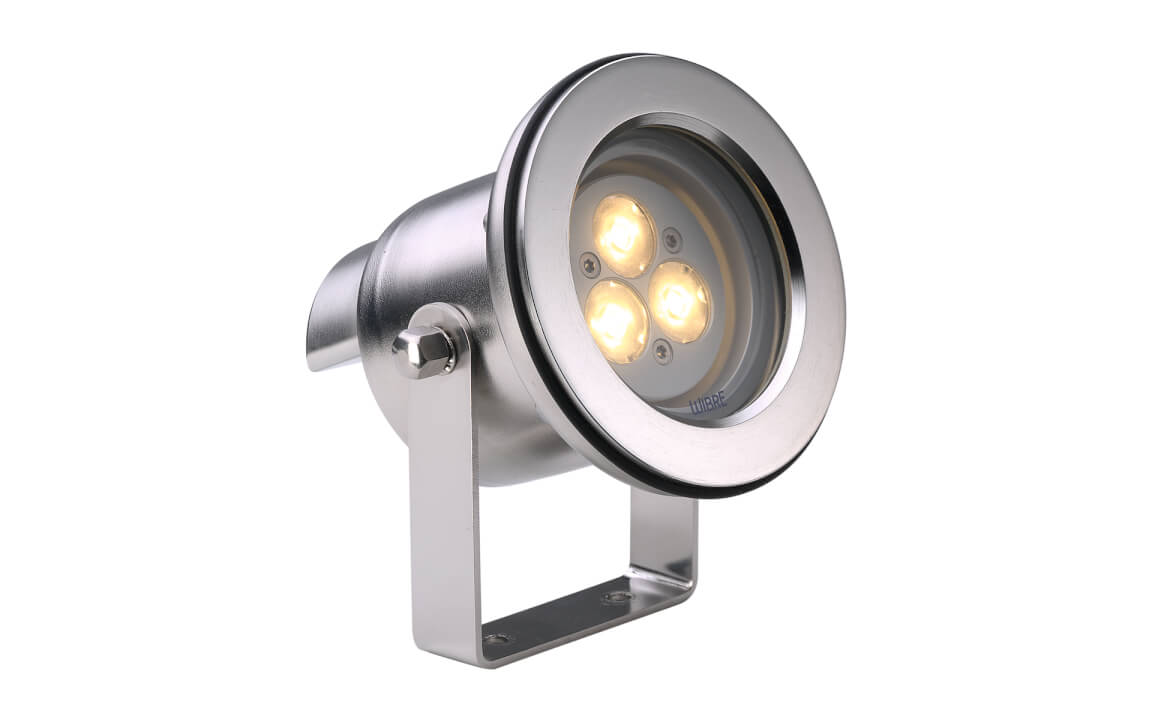

Protection class IP68 – up to 3m water depth. Protection class IP69 - protection against high pressure and high jet water temperatures. Entirely made of stainless steel 316Ti 1.4571. Mounting foot adjustable through 180°. POW-LED cold white, warm white, neutral white. POW-LED blue. POW-LED RGB. Multichip POW-LED RGB. Multichip POW-LED RGB-W. Multichip POW-LED Dynamic white. Operating mode: constant current. Rotationally symmetric light distribution. Screw-type cable fastener with M16x1.5, PVDF. Constant-current power source/RGB controller external. Supplied with lamp

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 92 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
