Product Detail
Home Products Detail

Products

XAL

LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L651G0021 090-7L60100

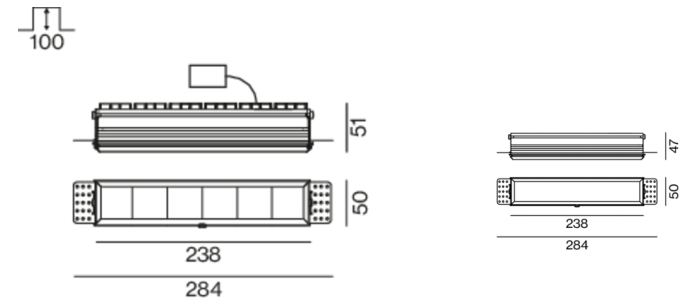

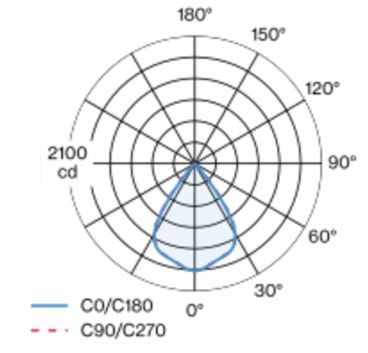

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

Specification

Power
19.8W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2060LM
Finishing
CHROME
IP Rating
IP20
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

SPARK
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed fixed triple downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector come with Chrome black, White and Silver finish. Honeycomb accessory available upon request.

SPARK
WALLWASHER
OUTDOOR LIGHTING

Outdoor aluminium housing wallwasher luminaire in one pc lens, primary light distribution technology, anti-corrosive and UV-resistant. T-shaped bracket can be mounted from 0-180 degrees. Suitable for outdoor lighting applications such as park, station, bridge, club, billboard, road protective railing and wall facade of building etc. IP66

LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission ceiling lights for indoor application. The warm white LED light source is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 518 lm, with a 103.6 lm/W nominal luminous efficacy. The device body is made of PC and features a black finish The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate with a metallization treatment. The ingress protection degree is IP20; the total weight is of 0.350 kg. The total absorbed power is 6 W. The power supply cable is included and features a 0.170 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
ARTEMIDE
WALL LIGHT
OUTDOOR LIGHTING
An innovative patented optic realizes a light blade that, from a single LED source, draws a 360 ° light profile. A perfect tool for architectural lighting that emphasizes with high effciency the different opening profiles
