Product Detail | Bloxlimited

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

090-7L451G0021 090-7L4020W

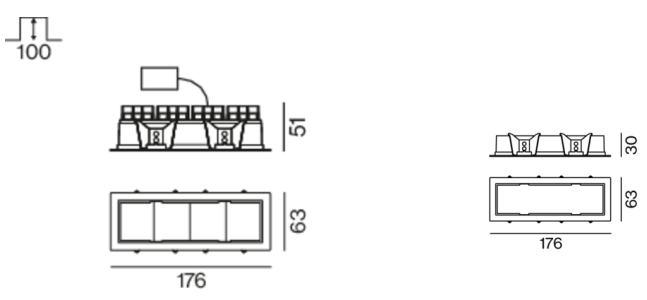

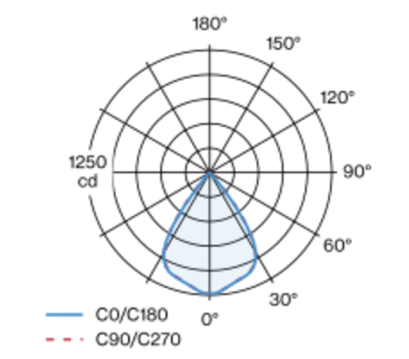

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

Specification

Power

13.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1450LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED LINEAR LIGHT

INDOOR LIGHTING

Single emission lines for indoor application. The warm white LED light source with a general lighting light distribution is composed of 54 topled LEDs with CCT of 3000 K and a CRI 80 the source luminous flux is 2020 lm, with a 134.7 lmW nominal luminous efficacy. The device body is made of aluminium and features a aluminium finish, processed by means of anodisation the diffuser is made of PC. The ingress protection degree is IP40 the total weight is of 2.15 kg. The power supply driver is included in the delivery. The total absorbed power is 15 W. The device features protection class I and can be wall lights or ceilingmounted, with a 43 x 1005 mm hole in plasterboard.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98724 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

SPARK

RECESSED MAGNETIC TRACK LINEAR

INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely.
