Product Detail | Bloxlimited

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

090-7L451E0021 090-7L4020W

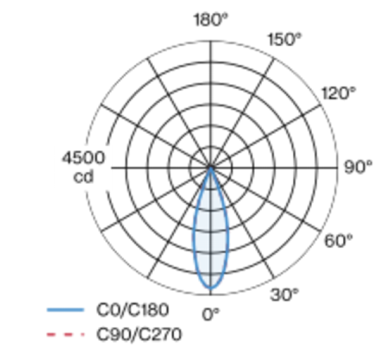

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

Specification

Power

13.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1180LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

IGUZZINI

SPOTLIGHT

OUTDOOR LIGHTING

Spotlight designed to use LED lamps and a Wide Flood optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multistep, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. 5 mm thick tempered sodium-calcium closing glass. Double adjustability allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane ip66, IK07.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable downlight, die cast aluminium housing body. Various choices on CCT, beam angle and inner reflector.

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.510 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99912 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
