Products
XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L451B0021 090-7L4020W

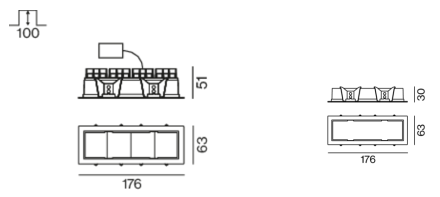

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due
to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling
thickness of 2-25 mm; equipped with four medium round light elements; symmetrical light distribution with

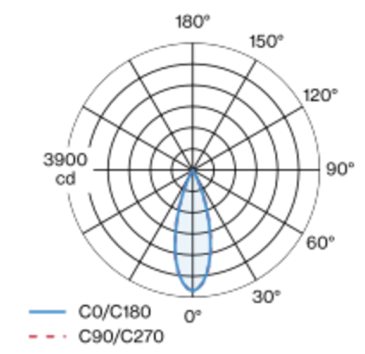

precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised
surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1;
luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light
colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating
hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl.
converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory;
accessories are listed separately; light source not replaceable; control gear replaceable by an authorized
professional; clank-free
Specification
- Power
- 13.9W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 1200LM
- Finishing
- WHITE
- IP Rating
- IP20
- Color Rendering
- CRI >90
- Driver
- ON/OFF DRIVER
