Passo step luminaire is a product that catch the attention and can amaze for its ability to generate shadows and reflections. With the version made in corten steel the shapes and the volume of the product are highlighted while with the version in frosted stainless steel, the colours of the surrounding environment are reflected, generating unexpected flashes. In its simplicity and purity, Passo can be installed in any type of environment, perfectly fitting into it. IP67, IK06

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 46°, luminous flux: 370 lm, wattage: 6 W, delivered lumens 62 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,009 m², dimensions: Ø 100 mm, width 80 mm, weight 1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Linear projector with light housing in aluminium extrusion. End caps and mounting brackets in cast aluminium. Product inclusive of toughened safety glass, weatherproof durable silicone gasket, breather device and external screws made of stainless steel. Front cover in hinged aluminium frame designed to avoid accumulation of dust and water. Electrical installation includes double cable entry. Available in two sizes. Light adjustable vertically up to 195° and horizontally 0-35°.

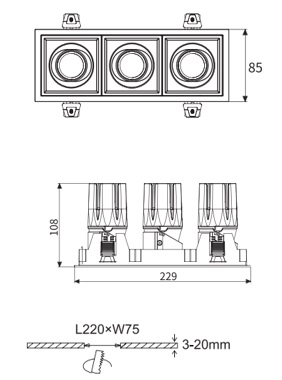

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1470 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pet. The ingress protection degree is IP20; the total weight is of 0.36 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 12 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 113 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
