SPARK

Single emission lines for outdoor application. The warm white LED light source with a general lighting light distribution is composed of 120 topled LEDs. Luminaire body is made of PC and features a opaline finish the diffuser is made of PC. The ingress protection degree is IP67. IK08

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, stainless steel cover frame and closure with stainless steel screws, cable gland: M20 (stainless steel), connecting terminal: 3 pole, integral control gear, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 10° / 99°, luminous flux: 1256 lm, wattage: 26 W, delivered lumens 48 lm/W, protection type IP67, protection class I, impact resistance IK09, dimensions (L×H×W): 635 × 99 × 122 mm, weight 7.7 kg The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20

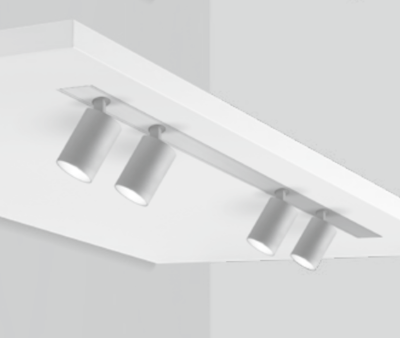

The Solo Round Series recessed spotlight body in cast aluminum is available in 2 sizes Solo Square Ø168mm and Solo S Ø112mm trim and trimless versions. The unique pull-down mechanism enables Solo to function as either a downlight, a regressed accent light, or an exposed lamp head able to emulate a surface or track fixture. The light head of Solo Round is fully adjustable with vertical tilt up to 45° and 40° for Solo S round; and rotatable horizontally up to 360°.
