Product Detail
Home Products Detail

Products

XAL

LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L451A0021 090-7L4020B

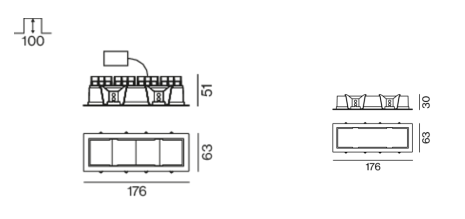

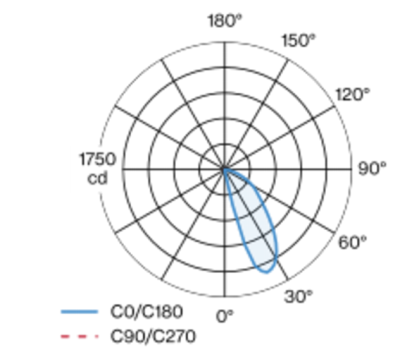

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with four wallwasher light elements; asymmetrical light distribution with precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power
13.9W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1220LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

WE-EF
WALL LIGHT
OUTDOOR LIGHTING
Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Luminaire can be mounted for up or down lighting.
ELR
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

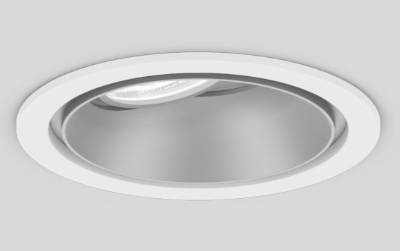

A series of premium recessed downlights available in various sizes, shapes, and finishing. Paired with ELR’s highly configurable LED modules, the Vasari downlight series offers a high degree of flexibility, aesthetics and functionally for the most discerning of applications.

IGUZZINI
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Round adjustable luminaire made of die-cast aluminium body. Lower reflector vacuum-metallised with aluminium vapours with an anti-scratch protective layer. Anodised aluminium upper reflector. Black, zinc-plated sheet steel bracket. The luminaire can be rotated 30° relative to the horizontal plane and 358° about the vertical axis. The luminaire is fitted with mechanical locks for light beam aiming.

CDN LIGHTING
SURFACE MOUNT ADJ LIGHT
INDOOR LIGHTING

-DOVER is a series of surface-mounted downlights designed for indoor spaces without false ceilings.

-There are square andround options, each available in three different sizes, with fixed and adjustable versions.

-This product is the round and adjustable model, available in three sizes: 80mm, 95mm, and 120mm in diameter. The LED is deeply hidden, providing an excellent anti-glare effect. -If further glare reduction is needed,we offer an additional version with ahoneycomb louver option.
